High Strength Black Flat Head Plow Bolt M10 Class 12.9

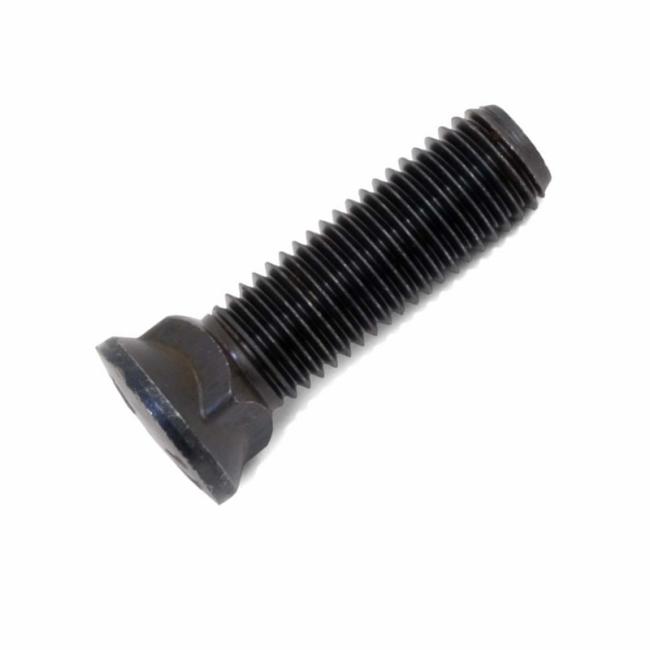

High strength M10 class 12.9 black color flat head plow bolt
For heavy machinery, we offer two types of plow bolts: those with flat heads and those with domed heads. Both types have a countersunk head and square neck to prevent turning when the nut is tightened or removed. Primarily used in gang plows, road graders, snowplows, and similar heavy equipment, these bolts are durable and reliable

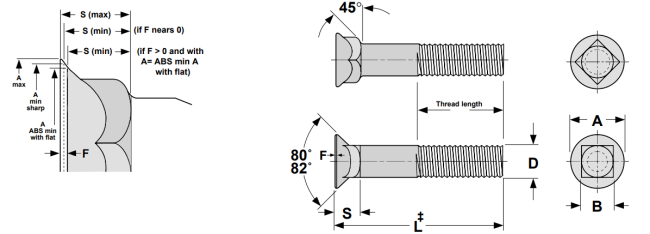

| Plow Bolts | |||||||||||
| D | E | A | F | S | B | ||||||
| Nominal or Basic Product Diameter | Full Size Body Diameter | Diameter of Head | Feed Thickness | Depth of Square and Head | Width of Square | ||||||
| Max | Min | Max | Min Sharp | Abs. Min with Flat | Max | Max | Min | Max | Min (Basic) | ||
| 5/16 | 0.3125 | 0.312 | 0.299 | 0.505 | 0.578 | 0.563 | 0.025 | 0.269 | .243 | .325 | 0.313 |
| 3/8 | 0.375 | 0.375 | 0.36 | 0.577 | 0.671 | 0.656 | 0.031 | .312 | .281 | 0.387 | .375 |
| 7/16 | 0.4375 | 0.438 | 0.421 | 0.65 | 0.781 | 0.766 | 0.036 | .364 | .328 | 0.45 | .438 |
| 1/2 | 0.5 | 0.5 | 0.483 | 0.722 | 0.89 | 0.875 | 0.042 | .417 | .375 | 0.515 | .500 |
| 5/8 | 0.625 | 0.657 | 0.606 | 866 | 1.094 | 1.063 | 0.05 | .506 | .456 | 0.64 | .625 |
| 3/4 | 0.5625 | 0.782 | 0.729 | 0.938 | 1.25 | 1.219 | 0.05 | .541 | .491 | 0.765 | .750 |
| 7/8 | 0.875 | 0.938 | 0.853 | 1.083 | 1.469 | 1.406 | 0.063 | .626 | .563 | 0.906 | .875 |
| 1 | 1 | 1.062 | 0.976 | 1.299 | 1.594 | 1.594 | 0.063 | .690 | .627 | 1.031 | 1.000 |
| Standard: ASME/ANSI B 18.2.1,DIN608 |
| Size: 1/4”-1.1/2”, M5-M36 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8; |
| Thread: M, UNC, UNF |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
