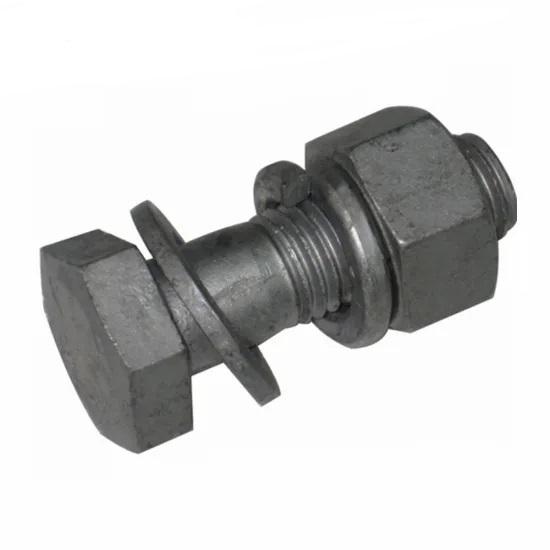

40Cr F2280 A490TC Hot Forged High Strength Heavy Hex Bolt Hot Dip Galvanized
F2280 A490TC hot dip galvanized hot forged high strength heavy hex bolt
The ASTM A490 specification cover quenched and tempered, alloy steel, heavy hex structural bolts from 1/2″ diameter through 1-1/2″ diameter with a minimum 150 ksi tensile. These bolts are intended for use in structural connections and therefore have shorter thread lengths than standard hex bolts.A490 bolts are similar in application and dimensions to A325 heavy hex structural bolts but are made from an alloy steel rather than a medium carbon steel, resulting in a higher strength fastener. The A490 specification is applicable to heavy hex structural bolts only.
SIZE: 1/4" - 1.1//2", M6 -M36. And 600mm Max length.
STANDARD: ASME B18.2.6
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
| 490 MECHANICAL PROPERTIES | ||||
| Size | Tensile, ksi | Yield, ksi | Elong.% min | RA% min |
| 1/2" - 1-1/2" | 150 - 173 | 130 | 14 | 40 |
| 490 CHEMICAL PROPERTIES | ||||
| Type 1 | Type 3 | |||
| Element | 1/2" - 1-3/8" | 1-1/2" | 1/2" - 3/4" | Above 3/4" |
| Carbon | 0.30% - 0.48% | 0.35% - 0.53% | 0.20% - 0.53% | 0.30% - 0.53% |
| Phosphorus, max | 0.04% | 0.04% | 0.04% | 0.04% |
| Sulfur, max | 0.04% | 0.04% | 0.04% | 0.04% |
| Manganese, min | - | - | 0.40% | 0.40% |
| Copper | - | - | 0.20% - 0.60% | 0.20% - 0.60% |
| Chromium, min | - | - | 0.45% | 0.45% |
| Nickel, min | - | - | 0.20% | 0.20% |
| or | ||||
| Molybdenum, min | - | - | 0.15% | 0.15% |
| A490 RECOMMENDED HARDWARE | ||
| Type | Nut | Washer |
| Type 1 | A563 Grade DH | F436 Type 1 |
| Type 3 | A563 Grade DH3 | F436 Type 3 |
