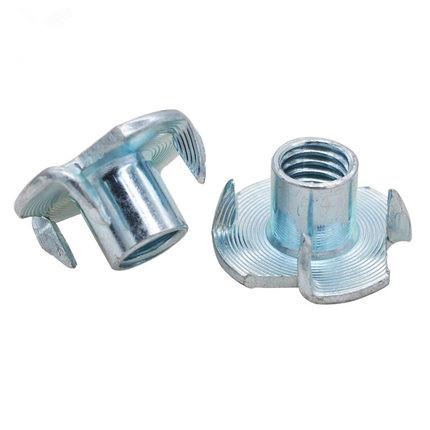

Furniture Low Carbon Pronged Tee Nuts Class 4 Zinc Plated 20 X 7/16
Low carbon steel class 4 zinc plated 1/4-20 x 7/16 Furniture Tee Nut
The Tee nut also has an elongate generally cylindrical barrel which is conventionally threaded internally with female threads. In some instances the threading extends only partially within the barrel from the flange at the proximal end portion to the beginning of the distal end portion with the distal end portion being smooth and often having a larger inside diameter than the proximal end portion.
|
Nominal Size |
Thread Pitch (p) |
Overall height (h) |
Prong Height (a) |
Width of base (d2) |
|
|
|
Ref. |
Ref. |
Ref. |
|
#10 |
24 |
5/16. |
7/32. |
3/4. |
|
1/4. |
20 |
5/16. |
7/32. |
3/4. |
|
1/4. |
20 |
7/16. |
5/16. |
3/4. |
|
5/16. |
18 |
3/8. |
1/4. |
7/8. |
|
5/16. |
18 |
5/8. |
5/16. |
7/8. |
|
3/8. |
16 |
7/16. |
11/32. |
1 |
|
Nominal Size |
Thread Pitch (p) |
Overall height (h) |
Prong Height (a) |
Width of base (d2) |
|
|
|
Ref. |
Ref. |
Ref. |
|
M4 |
0.7 |
6 |
5 |
15 |
|
M5 |
0.8 |
8 |
7 |
17 |
|
M6 |
1 |
9-12. |
7 |
19 |
|
M8 |
1.25 |
11-15. |
9 |
22 |
|
M10 |
1.5 |
13 |
11 |
25 |
|
Standard: ASME/ANSI ,DIN1624 |
|
Size: 1/4",5/16",3/8",7/16", M5-M12 |
|
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
|
Grade: Class 4. SAE J429 Gr.2, B8,B8M,B8T |
|
Thread: UNC, UNF,UN |
|
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
