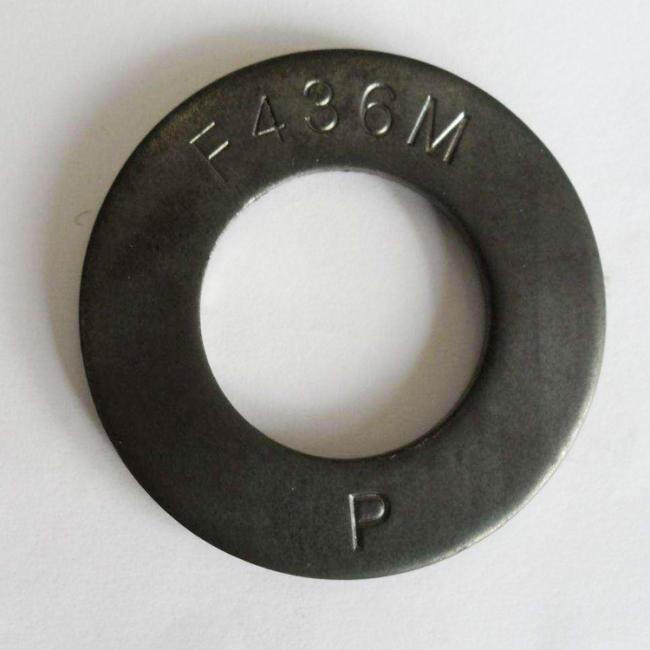

Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436
Hardened HRC 26-45 steel black finish 5/8 inch Structural Flat washer F436
A washer is a thin plate (typically disk-shaped, but sometimes square) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener, such as a bolt or nut. Other uses are as a spacer, spring (Belleville washer, wave washer), wear pad, preload indicating device, locking device, and to reduce vibration (rubber washer). Washers often have an outer diameter (OD) about twice their inner diameter (ID), but this can vary quite widely.
SIZE: 1/4" - 4", M6 -M100 .
STANDARD: ASTM F436/F436M
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
| F436 STYLES | ||
| Style | Description | Sizes |
| Circular | Round SAE pattern | 1/4" - 4" |
| Beveled | Square or rectangular with a beveled 1 to 6 ratio surface. For use with American standard beams and channels. | 1/2" - 1-1/2" |
| Clipped | Circular or beveled | 1/2" - 1-1/2" beveled |
| 1/4" - 4" circular | ||
| Extra Thick | Circular washers with a thickness of 5/16" | 1/2" - 1-1/2" circular |
| F436 MECHANICAL PROPERTIES | |
| Plain Finish | Hot Dip Galvanized |
| Rockwell Hardness 38 to 45 HRC | Rockwell Hardness 26 to 45 HRC |
| F436 CHEMICAL PROPERTIES | ||
| Element | Type 1 | Type 3 |
| Phosphorous, max | 0.04% | 0.04% |
| Sulfur, max | 0.05% | 0.05% |
| Silicon | - | 0.15% - 0.35% |
| Chromium | - | 0.45% - 0.65% |
| Nickel | - | 0.25% - 0.45% |
| Copper | - | 0.25% - 0.45% |
|
Flat Washer Sizes |
Inner Diameter (ID) |
Outer Diameter (OD) |
Washer Thickness |
|
1/2" |
0.531" |
1.063" |
0.177" |
|
5/8" |
0.688" |
1.313" |
0.177" |
|
3/4" |
0.813" |
1.468" |
0.177" |
|
7/8" |
0.938" |
1.750" |
0.177" |
|
1" |
1.063" |
2.000" |
0.136" - 0.177" |
|
1-1/8" |
1.188" |
2.250" |
0.136" - 0.177" |
|
1-1/4" |
1.375" |
2.500" |
0.136" - 0.177" |
|
1-3/8" |
1.500" |
2.750" |
0.136" - 0.177" |
|
1-1/2" |
1.625" |
3.000" |
0.136" - 0.177" |
|
1-3/4" |
1.875" |
3.375" |
0.280" |
|
3" |
3.125" |
5.500" |
0.340" |
