M6 Carbon Steel 1/4 Inch Galvanized Wedge Anchors corrosion resistant
Carbon steel galvanized 1/2 thread Heavy-duty Concrete Wedge Anchors

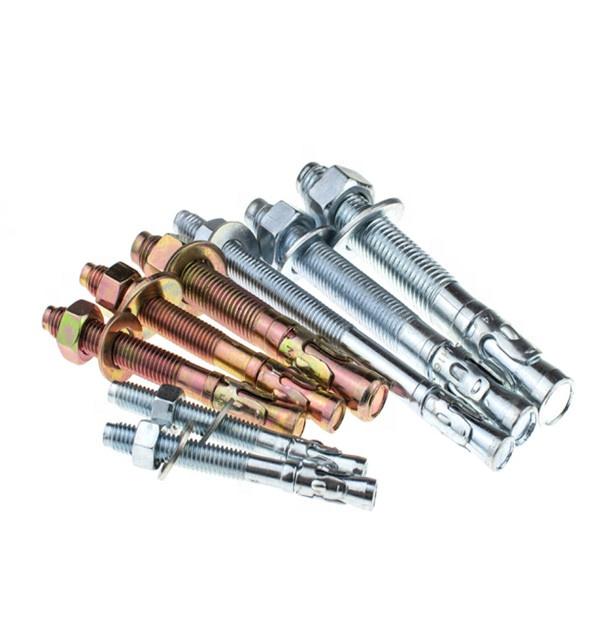

Concrete Wedge Anchors are heavy-duty anchors used to secure materials and equipment to solid concrete masonry surfaces. They are extremely popular and are one of the strongest anchors for hold strength. Wedge anchors look and function like a sleeve anchor but have a much smaller sleeve near the anchor's bottom. This sleeve near the bottom is a mechanism that expands once installed and "wedges" itself into the concrete. Lengths on these anchors are measured from end-to-end.
SIZE: 1/4" - 1", M6 -M18.
STANDARD: ASME B18.2.6
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
| Thread | Drill hole | Length range | Thread | Drill hole | Length range |
| (mm) | (mm) | (mm) | |||
| M6 | 6 | 40-120 | 1/4" | 1/4" | ≈45-120 |
| M8 | 8 | 50-220 | 5/16" | 5/16" | ≈50-145 |
| M10 | 10 | 60-250 | 3/8" | 3/8" | ≈60-200 |
| M12 | 12 | 70-400 | 1/2" | 1/2" | ≈70-305 |
| M14 | 14 | 80-200 | 5/8" | 5/8" | ≈80-305 |
| M16 | 16 | 80-300 | 3/4" | 3/4" | ≈90-305 |
| M18 | 18 | 100-300 | 1" | 1" | ≈125-405 |
| M18 | 20 | 100-400 | |||
| M18 | 24 | 120-400 |
