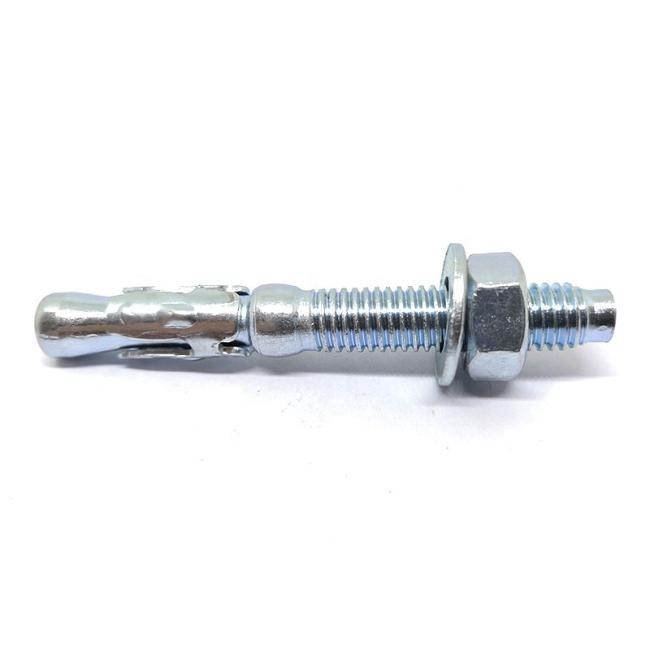

M14 Yellow Chromate 3/8 Inch Concrete Wedge Heavy Hex Bolts Expansion Anchor
Yellow chromate 3/8 inch thread Heavy-duty Concrete Wedge Anchor Bolts
Wedge Anchors are commonly used on oil rigs, docks, piers, floors, walls, or slabs. They are available in Zinc Plated Steel, Hot Dip Galvanized Coating, and both 304 and 316 Stainless Steel grades. Wedge Anchors are available in 1/4"-20, 3/8"-16, 1/2"-13, 5/8"-11, 3/4"-10, 7/8"-9, and 1"-8 sizes, with the nut and washer included.
SIZE: 1/4" - 1", M6 -M18.
STANDARD: ASME B18.2.6
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
| Thread | Drill hole | Length range | Thread | Drill hole | Length range |
| (mm) | (mm) | (mm) | |||
| M6 | 6 | 40-120 | 1/4" | 1/4" | ≈45-120 |
| M8 | 8 | 50-220 | 5/16" | 5/16" | ≈50-145 |
| M10 | 10 | 60-250 | 3/8" | 3/8" | ≈60-200 |
| M12 | 12 | 70-400 | 1/2" | 1/2" | ≈70-305 |
| M14 | 14 | 80-200 | 5/8" | 5/8" | ≈80-305 |
| M16 | 16 | 80-300 | 3/4" | 3/4" | ≈90-305 |
| M18 | 18 | 100-300 | 1" | 1" | ≈125-405 |
| M18 | 20 | 100-400 | |||
| M18 | 24 | 120-400 |
