2.18g/cm3 Fused Alumina Zirconia Grey For Bonded Abrasives

Price Negotiable
Price: USD2300-2500/MT
MOQ: 20MT
Delivery Time: 7days for the quantity within 500MT
Brand: EASTKING
Product Description

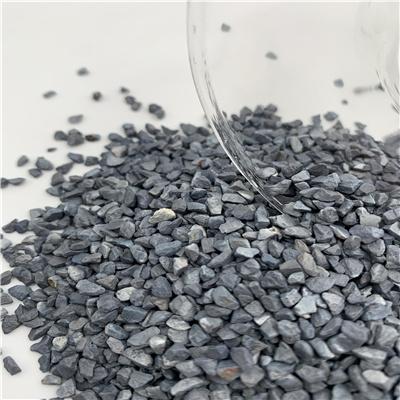

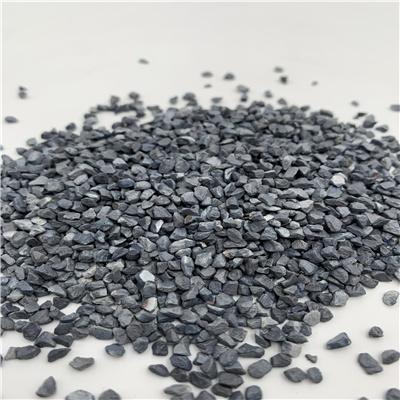

Top Grade Abrasives Material Fused Alumina Zirconia ZA 40% for Bonded Abrasives



Product Description

Fused Alumina-Zirconia is produced in a high temperature electrical arc furnace by fusing zirconium quartz sand and alumina. It is characterized by hard dense structure, high toughness, good thermal stability. It's suitable for manufacturing large grinding wheels for steel conditioning and foundry snagging, coated tools and stone blasting, etc.
It is also used as an additive in Continuous casting refractories. Due to its high toughness it is used to provide Mechanical strength in these refractories.



Zirconia Alumina F20 F22 F24



PRODUCT NAME
Fused Alumina Zirconia
RAW MATERIAL
ALUMINUM OXIE AND ZIRCONIUM OXIDE
STANDARD
FEPA JIS
GRADE
Al2O3
ZrO2
TiO2
Fe2O3
SiO2
ZA25%
68-72
24-30
≤1.5
≤0.5
≤1.0
ZA40%
55-57
35-44
≤1.5
≤0.5
≤1.0



AVAILABLE SIZES

0-0.5MM 0.5-1MM 1-1.5MM 1.5-2MM 2.5-3MM 3-3.5MM 3.5-4MM 0-1MM 1-2MM 2-3MM 1-3MM 3-5MM 4-5MM 3-6MM 5-8MM
F4 F5 F6 F7 F8 F10 F12 F14 F16 F20 F22 F24 F30 F36 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220
JIS#4 JIS#5 JIS#6 JIS#7 JIS#8 JIS#10 JIS#12 JIS#14 JIS#16 JIS#20 JIS#24 JIS#30 JIS#36 JIS#46 JIS#54 JIS#60 JIS#70 JIS#80 JIS#90 JIS#100 JIS#120 JIS#150 JIS#180 JIS#220
Physical Properties
Crystal Form
Monoclinic,tetragonal system
Reaction with carbon
Forming carbide since 1650℃
Color
Grey
True Density
4.20g/cm3
Bulk Density
2.18g/cm3
Moh's hardness
9.0
Melting point
1900℃
Knoop hardness
1450-2000kg/cm2
Maximum service temperature
1700℃
Specific heat capacity(cal/g.℃)
0.2205(50-500℃)
Heat conductivity
0.2718 cal/cm2.sec.℃
Linear expansivity(X10-6)
6.82(100-700℃)
Applications

* Top grade refractory material

* Bonded abrasives and coated abrasives

* Grinding wheels production.

* Surface preparation and finishing

* Metal or non-metal surface sandblasting rust

* Grinding wheel,Sandpaper,Cutting blade
