F30 Sharp Grain Brown Fused Alumina Corundum For Resin Bonded Grinding Wheels

Price Negotiable
Price: USD600-770/MT
MOQ: 1MT
Delivery Time: 7days for quantity less than 1000MT
Brand: EASTKING
Product Description

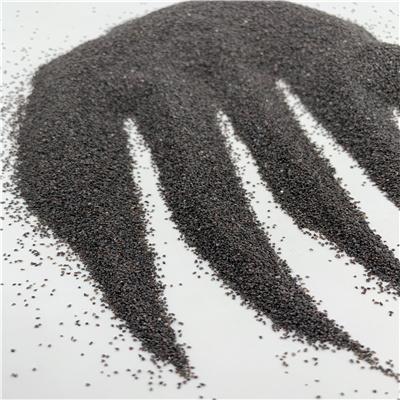

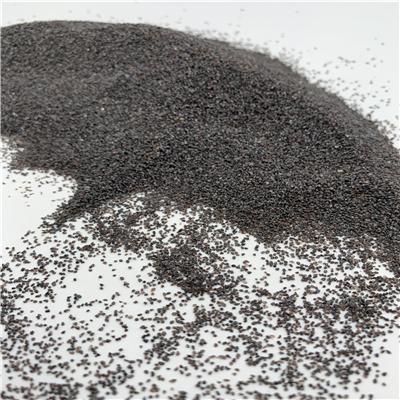

F30 Sharp Grain Brown Fused Alumina Corundum For Resin Bonded Grinding Wheels

Brown Fused Alumina 95% Introduction



Brown aluminium oxide/brown fused alumina is fused and crystallized under high temperature from a mixture of bauxite and other and other raw materials. It is characterized by its high hardness,good toughness and shape in size. Abrasives tools made of it are suitable for grinding metals of high-tensile strength such as: carbon steel,general-purpose alloy steel,annealed malleable iron and hard broze,etc.It also can be used as refractory materials.

Brown Fused Alumina Characteristics
High hardness, high crystallinity, good linear flow performance, weak adherence, no explosion while using, no cracking, no pulverizing, abrasive product with dark blue color after burning, no net cracks, no rust.

Brown Fused Alumina Properties

Items Unit Index Typical
Chemical Composition Al2O3 % 95%min 95.56
SiO2 % 1.2max 0.96
Fe2O3 % 0.30max 0.09
TiO2 % 3.00max 2.55
Melting point 2050
Refractoriness 1980
True density g/cm3 3.90min
Mohs hardness --- 9.00min
Refractory grain sizes mm 0-50, 0-1, 1-3, 3-5, 5-8
Fine powder mesh -80, 100, 150, 200, 325F
Abrasives Grits FEPA 8, 14, 16, 20, 22,24, 30, 36, 40, 46, 60, 70, 80, 90, 100, 120, 150, 180, 220, 240



Fixed Furnace Barmac Crushing

Items Unit Index Typical
Chemical Composition Al2O3 % 95%min 95.23
SiO2 % 1.5max 1.28
Fe2O3 % 0.30max 0.17
TiO2 % 3.00max 2.62
Melting point 2050
Refractoriness 1980
True density g/cm3 3.90min
Mohs hardness --- 9.00min
Refractory grain sizes mm 0-50, 0-1, 1-3, 3-5, 5-8
Fine powder mesh -80, 100, 150, 200, 325F
Abrasives Grits FEPA 8, 14, 16, 20, 22,24, 30, 36, 40, 46, 60, 70, 80, 90, 100, 120, 150, 180, 220, 240




Brown Fused Alumina Applications



Abrasive: Produce ceramic grind wheel, resinoid grinding wheel, Grinding stone, Grinding block, sand paper, sand cloth, sand belt, polish wax, abrasive paste, coating etc..
Refractory material: Mainly used for abrasion and high temperature resistant, inoxidizable aggregate and filling of shaped and monolithic refractory in steel metallurgy, various industrial stoves, electric furnace etc..

Sandblasting abrasive: Mainly used for various material workpieces to decontaminate, derusting, prevent corrosion, remove oxide skin etc..

Abrasion resistance ground: Mainly used for non-slip of airport and road, chemical factory board paving.
Precision casting: Investment casting technics of stainless steel and aluminium casting in coating.



Grit

Bulk density (g/cm3)

Grit

Bulk density (g/cm3)

F12 1.84-1.98 F54 1.69-1.83
F14 1.84-1.98 F60 1.66-1.80
F16 1.83-1.97 F70 1.66-1.80
F20 1.81-1.95 F80 1.62-1.76
F22 1.80-1.94 F90 1.60-1.74
F24 1.80-1.94 F100 1.57-1.71
F30 1.78-1.92 F120 1.54-1.68
F36 1.76-1.90 F150 1.52-1.66
F40 1.73-1.87 F180 1.50-1.64
F46 1.71-1.85 F220 1.48-1.62





Brown Fused Alumina Packing



1). 25 kg/bag, in bulk;

2). 25 kg/bag, 40 bags/big bag;

3). 25 kg/ bag, 40 bags/pallet;

4).According to customer's requirement
