ICU Defibrillator Machine Parts Zoll M Series Defibrillator Electrode Paddle Plate Pads

Zoll M series Defibrillator Electrode Paddle Plate Pads Defibrillator Machine Parts

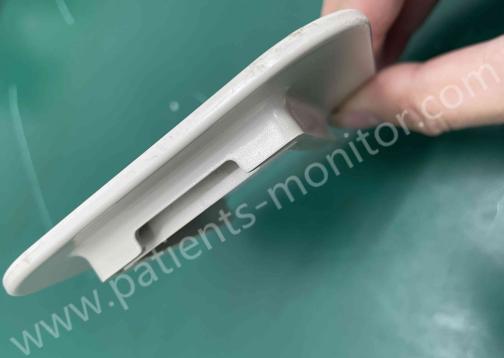

Zoll M series Defibrillator Electrode Paddle Plate Pads

► Brief Introduction

Paddle plate design: The electrode pads have a flat paddle plate design that allows for easy placement on the patient's chest. The flat surface ensures good contact with the skin, leading to better electrical conduction.

High-quality adhesive: The pads have a strong adhesive that helps to keep them securely in place during use. This ensures that the pads do not become dislodged, which could affect their effectiveness.

Compatibility: The electrode pads are designed to be compatible with Zoll M series defibrillators, ensuring that they can be easily connected without any compatibility issues.

Large size: The pads are generally large in size, covering a larger surface area on the patient's chest. This helps to distribute electrical energy evenly and improves the chances of successful defibrillation.

Center snap: The pads have a center snap design that allows for quick and easy application. This snap connects the pads to the defibrillator and ensures a secure and reliable connection.

Clear placement instructions: The pads typically come with clear placement instructions labeled on them, which makes it easy for medical professionals to follow the correct placement guidelines during an emergency situation.

► Energy Level:

Shock 1, 2, 3

Selects the energy levels used for the 1st, 2nd, and 3rd consecutive shocks that the defibrillator delivers when:

• In semi-automatic or advisory mode and using pads

• In manual mode, using external paddles or pads, with Basic Auto Energy Escalation set to “Yes”

Energy level 1 is the energy level the unit defaults to when the power is turned on with external paddles or pads connected. For more information about the Basic Auto Energy Escalation setting, see the “Basic Auto Energy Escalation” section of this manual.

► Troubleshooting

Problem:CHECK PADS/POOR PAD CONTACT message displays.

• Remove and reinsert PADS connector into the universal cable.
• Check for damaged defibrillator pads, wires and or connector.
• Check for dried out or expired defibrillator pads.
• Clip (not shave) the patient’s hair and wipe pad contact area dry.
• Connect the cable to the test plug. The DEFIB PAD SHORT message displays to indicate that the cable is functioning properly.
• If the DEFIB PAD SHORT message displays, then check the connections of the pads to the patient and to the defibrillator cable.
• If the DEFIB PAD SHORT message does not display, remove the defibrillator from service.

► Specification

Customer satisfaction. Our biggest pursuit! If you have any questions about Zoll M series Defibrillator Electrode Paddle Plate Pads, please feel free to contact us at any time, we are glad to answer them.
