GE Tram-Rac 4A Module Rock Housing With Tram -Rac Ports For GE Solar9500 Solar8000 Anesthesia Monitor
GE Tram-Rac 4A Module Rock
GE Tram-Rac 4A Module Rock Housing with Tram -Rac Ports for GE Solar9500 Solar8000 Anesthesia Monitor
► Brief Description
GE Tram-Rac 4A Module Rock Housing with Tram -Rac Ports for GE Solar9500 Solar8000 Anesthesia Machines
GE Tram-Rac 4A Module Rock with Tram -Rac Ports - It is a professional medical device, mainly Tram-rac 4A housing, which can be inserted into various modules for use, such as Tram module, BP module and BP/dual temperature module etc. The main function of this Tram-Rac module is to collect patient data for the patient monitor. The Tram-Rac 4A Module Rock Housing can provide an interface between the patient monitor and the Tram module or discrete parameter module. If the GE Tram-Rac 4A Module Rock Housing is unpowered, the cable provides +16.5V power. But if the case is more than 20 feet away from the monitor, the ram-rac case needs its own power source.
► Specification
| Brand: | GE |
| Product Category: | Medical Equipment |
| Product Type: | Tram-Rac Housing |
| Model: | 4A |
| Machine Application: | Solar9500 Solar8000 |
| Power Requirements: | 220 ±40 VAC, 50/60 Hz, single phase |
| Power Consumption: | 120 watts |
| Low Voltage Shutdown: | 90 VAC/180 VAC |
| Cooling: | Convection |
| Heat Dissipation: | 238 Btu/hr (70 watts) |
| Height: | 22.9 cm (9.0 in) |
| Width: | 14.5 cm (5.7 in) |
| Depth: | 33.5 cm (13.2 in) |
| Weight: | 2.9 kg (6.4 lb) |
| Condition: | Used OR New |
| Warranty: | 90 Days |
| Delivery Date: | 3 - 5 Working Days |
► More Details

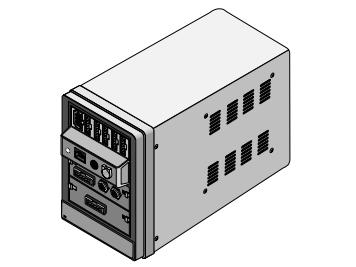

GE Tram-rac 4A Housing, which provides an interface for modules that monitor patient data. For example, in the picture below, a Tram module and a BP and a BP/dual temperature module are inserted.
Because the GE Tram-rac 4A Housing has three communication connectors, including a 15-pin yellow coded connector for analog output; two for tram network communication connections with patient monitors and tram network hub connections , remote control or interface to additional tram housing.
The GE Tram-rac 4A Housing has an additional hidden connector on the rear for connecting to power.
The GE Tram-rac 4A Housing can connect the module to the patient monitor through the Tram-net communication network to monitor the patient's body data. The casing adopts an exquisite design and is mainly composed of plastic, metal and various electronic components. LEDs on the front bezel indicate normal operation and, if present, power to the device.

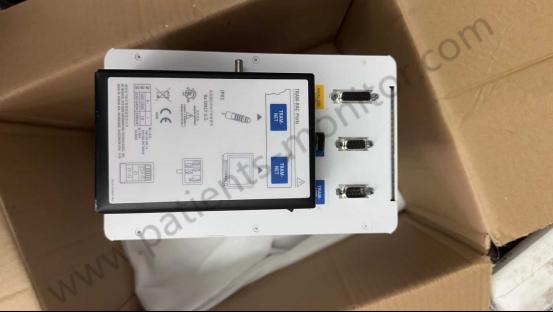

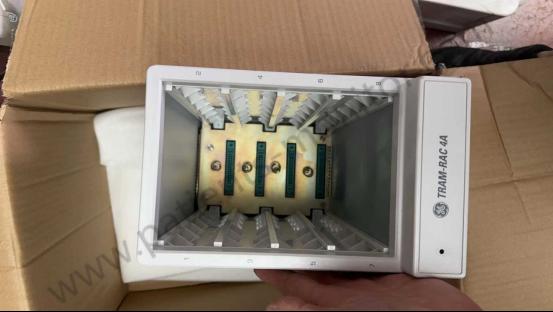

► Detailed Photos
Thanks for your interest in GE Tram-Rac 4A Module Rock Housing with Tram -Rac Ports for GE Solar9500 Solar8000 Anesthesia Monitor, please feel free to contact me. Thank you for your time and wish you have a happy life.
