MAQUET CARDIOSAVE Ventilator Machine Li-Ion Rechargeable Battery 15V 14.3Ah Ref 0146-00-0097 Original New

► Brief Introduction

It is extremely important to know the location of the batteries on the back panel of the Cardiosave unit and to pay attention to the “in-use” indicators.There are two Battery Bay indicators, one over each Battery Bay, which indicate which bay is currently in use by the IABP. The indicator will illuminate green if the IABP is charging a battery or operating from ower supplied by the corresponding Battery Bay.The Battery Bays provide the IABP with the ability to operate from a portable power source. They have a common physical lock which prevents simultaneous removal of both power sources.

► Charging a Single Battery

1. Attach the power cord, appropriate for the country of use securely into the back of the Battery Charging Station and plug the power cord into a compatible grounded AC receptacle. Do not use an adapter to eliminate the plug’s connection to ground.

2. Ensure the green power LED is illuminated.

3. Insert a battery into the battery slot, ensuring that the battery connector is facing the battery slot. Press gently on the battery to ensure it is fully seated in the charging slot.

4. The status LED over the battery slot will begin to flash green indicating that the battery is currently being assessed, and if necessary will begin to charge. Battery charging is indicated by the sequential flashing of the 5 battery status LEDs on the rear of the battery pack. Once the battery is charged, the status LED will be illuminated solid green. The battery is now fully charged and ready for use.

5. If the status LED over the battery slot is flashing red, an error has been detected with the battery and as a result, will not charge.

► Installation and Removal of Batteries

The IABP is capable of running from DC battery power supplied by lithium-ion rechargeable batteries which can be installed in the two (2) Battery Bays on the Pump Console. To avoid interruption of therapy, discharged batteries should be replaced with new charged batteries as necessary.

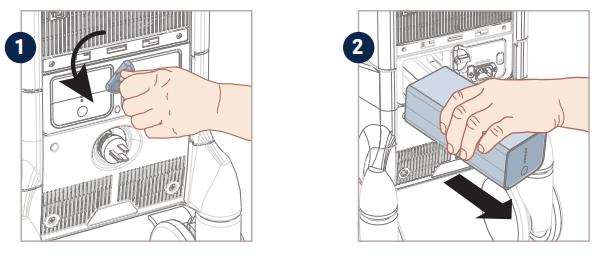

1. Turn knob to remove battery from Battery Bay.

2. Slide battery OUT.

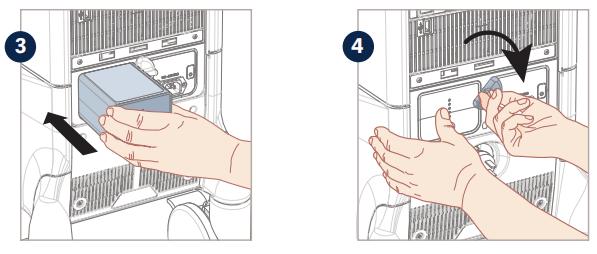

3. Slide charged battery IN.

4. While holding battery in bay, turn knob to lock battery in place.

► Specification

Each battery has five {5) LEDs on the back which indicate the battery’s approximate state of charge. Each LED represents approximately 20% charge. For example, one (1) illuminated LED informs the user that the battery has approximately 0-20% charge remaining, while five {5) lluminated LEDs informs the user that the battery has approximately 80-100% charge remaining.

If you have any questions about MAQUET CARDIOSAVE Ventilator Machine Li-Ion Rechargeable Battery 15V 14.3Ah Ref 0146-00-0097 Original New , please feel free to contact us at any time, we are glad to answer them.
