PRIMEDIC XD100xe M290 Defibrillator SpO2 Board M1020-66411 M1020-26411 Used Working In Good Condition
PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board
PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board M1020-66411 M1020-26411 Used Working in Good Condition
► Brief Description
PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board M1020-66411 M1020-26411
PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board - The PRIMEDIC XD100xe (M290) defibrillator is a medical device used to deliver an electric shock to the heart in the event of a life-threatening arrhythmia. The SpO2 Board (Part Numbers M1020-66411 and M1020-26411) is a component within this defibrillator that measures the oxygen saturation (SpO2) in the patient's blood.
The SpO2 Board is essential for monitoring the oxygenation status of a patient during resuscitation or other critical care situations. It works in conjunction with the SPO2 sensor to monitor the patient's pulse oxygen saturation.
► Condition
This PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board M1020-66411 M1020-26411 is second-hand but fully functional and in good condition. You can contact us to test the board again before placing an order, and we will send you the test video and detailed physical pictures for confirmation.
We provide a 90-day warranty. During this period, you can contact us at any time to resolve any quality issues.
► Spo2
SpO2 NELLCO pulseoximetry-module:
| Indication range | 100 - 0 % |
| Calibration range | 100 - 50 % |
| Measurement precision | SpO2 |
| Adults | 100 - 70 %, +/- 2 digits |
| 69 - 50 %, +/- 3 digits | |
| 50 - 0 %, not specified | |
| New-born | 95 - 70 % +/- 3 digits |
| Wavelength | Red: 660 nm |
| Infrared | 920 nm |
| Light density | 0,5 lumen/cm2 |
| Operating mode | continuous |
| Actualisation time | < 2 sec. |
► More Details
SpO2 is an important part of monitoring a patient's health status, and is usually achieved by attaching a sensor to a part of the patient's body. The Spo2 sensor is usually connected to a pulse oximeter sensor placed on the patient's finger or earlobe to measure the amount of oxygen bound to the hemoglobin molecule. The pulse oximeter works by applying the sensor to an area of tissue rich in capillaries and arterioles, such as a finger or toe. The sensor contains a dual light source and a photodetector. Bones, tissues, pigmentation, and venous blood vessels usually absorb a constant amount of light over time, and the vascular bed usually pulsates and absorbs different amounts of light during the pulsation. The ratio of light absorbed is then converted into a measurement of functional oxygen saturation (SpO2).

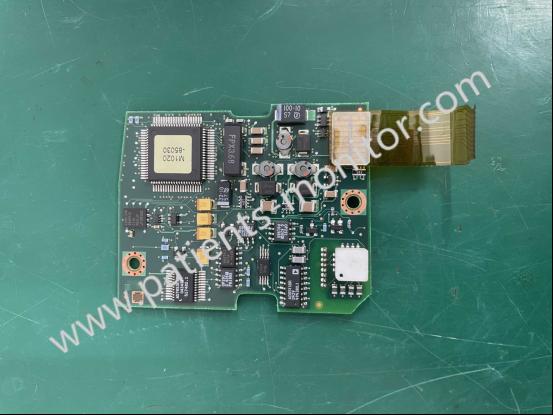

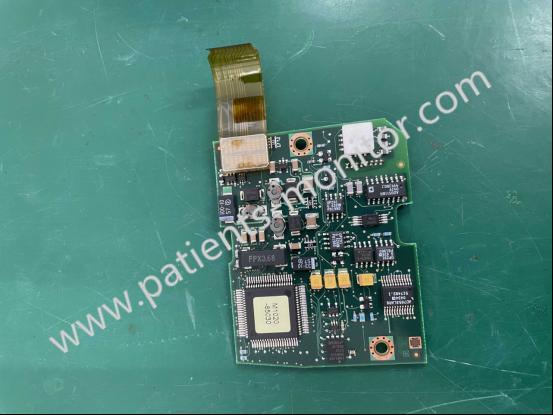

► Detailed Photos
Thanks for your interest in PRIMEDIC XD100xe (M290) Defibrillator SpO2 Board M1020-66411 M1020-26411 Used Working in Good Condition, please feel free to contact me. Thank you for your time and wish you have a happy life.
