► Brief Introduction

KARL STORZ Electronic ENDOFLATOR® 264305 20 is a universal inflatable device for laparoscopy and surgery. Use state-of-the-art pressure and flow measurement and control technology and multiple safety circuits for safe, trouble-free operation.

Patient pressure can be continuously adjusted between 0 and 30 mm Hg and flow between 0 and 20 l/min. Pressure and flow are displayed side-by-side as target and actual values, thus guaranteeing accurate monitoring of important inflation parameters at all times. In addition, the target value is displayed numerically in input mode and the actual value is displayed after the start of the inflation operation.

The most recently set setpoints for pressure and gas flow remain stored even after the device has been switched off, but must be confirmed by pressing the buttons when the user switches the device on again.

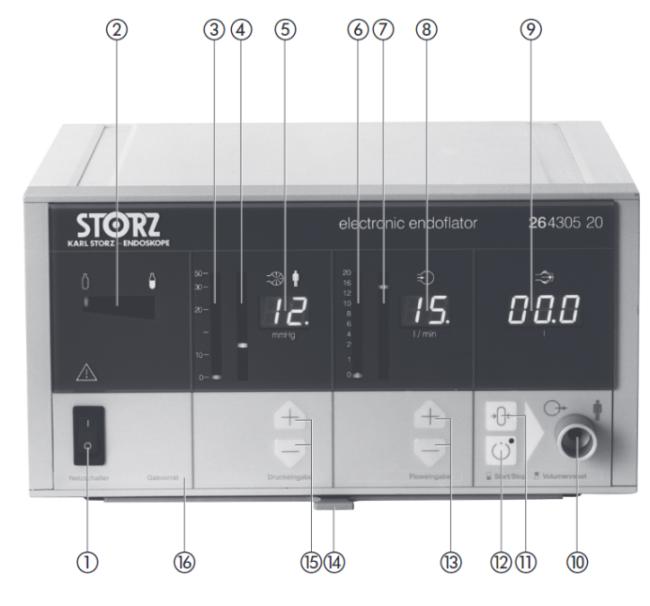

► Overview

1. mains switch

2. Gas reserve indicator

3. Indicator of the real value of the patient's pressure

4. Indicator of the theoretical value of the patient's pressure

5. Digital indicator of the theoretical value/actual value of the patient's pressure

6. Indicator of the actual value of the gas flow

7. Indicator of the theoretical value of the gas flow

8. Digital display of theoretical value/actual value of gas flow

9. Volumetric indicator of the amount of gas consumed

10. Insufflation connector for the patient

11. RESET key to reset the volumetric indicator

12. START/STOP button insufflation

13. ± keys to enter the theoretical value of the gas flow

14. Drawer for brief operating instructions manual

15. ± keys to enter the theoretical value of the patient's pressure

16. Identification strips (interchangeable)

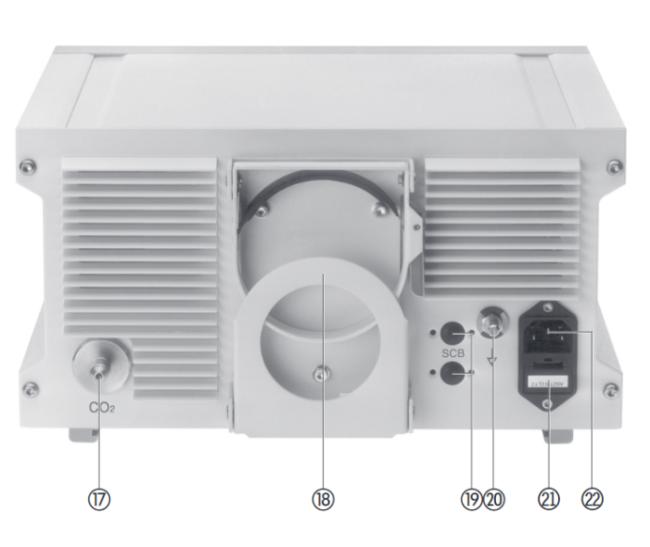

17. Device connector for gas supply (American connector)

18. Gas bottle holder

19. SCB connectors (only 2222266666 4305 20-1)*

20. equipotential connectorcm

21. Mains fuses: 2 x T2AL250V

22. Network connection plug

► Specifications
