Excavator DX255LC Slewing Gearbox DX255 Swing Reduction 2101-1025I
Excavator DX255LC slewing gear box DX255 swing reduction 2101-1025I swing gearbox
| Product name | DX255LC Swing gearbox |
| Place of Origin: | China(mainland) |
| Model: | DX255LC |
| Part number: | 2101-1025I |
| MOQ: | 1 PCS |
| Payment term: | T/T & & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |

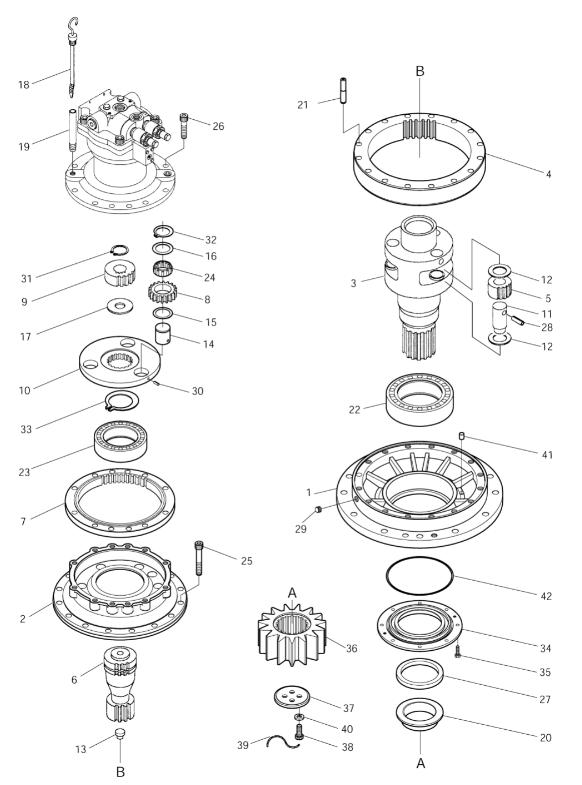

Parts on group
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| -. | 401-00125 | [1] | SWING DEVICE |
| -. | 401-00125A | [1] | SWING DEVICE |
| -. | 401-00125C | [1] | SWING DEVICE ASS'Y |
| -. | 2101-1025H | [1] | GEAR;REDUCTION |
| -. | 2101-1025I | [1] | GEAR;REDUCTION |
| 1. | 2423-1184D | [1] | CASING;FRONT |
| 10. | 2230-1034 | [1] | CARRIER |
| 11. | 2123-1631B | [3] | PIN |
| 12. | 2114-1553A | [6] | WASHER;THRUST |
| 13. | 2549-1118 | [1] | BUTTON;THRUST |
| 14. | 2123-1632 | [3] | PIN(NO.1) |
| 15. | 2412-9001 | [3] | PLATE;SIDE |
| 16. | 2412-9002 | [3] | PLATE;SIDE |
| 17. | 2412-9003 | [1] | PLATE;SIDE |
| 18. | 2505-1009 | [1] | BAR;LEVEL |
| 19. | 2182-1304 | [1] | PIPE |
| 2. | 2423-1185 | [1] | CASING;MIDDLE |
| 20. | 2278-1009A | [1] | RING;SPACER |
| 21. | 2123-1634 | [4] | PIN;KNOCK |
| 22. | 2109-9031 | [1] | BEARING;ROLLER |
| 23. | 2109-9032 | [1] | BEARING;ROLLER |
| 24. | 2216-9001 | [3] | CAGE;NEEDLE |
| 25. | S2225971 | [16] | BOLT;LOCK |
| 26. | S2224871 | [12] | BOLT;LOCK |
| 27. | 2180-1235 | [1] | SEAL;OIL |
| 28. | 2123-1633D2 | [3] | PIN;SPRING |
| 29. | 2181-1116D4 | [1] | PLUG |
| 3. | 2112-1156E | [1] | SHAFT;DRIVE |
| 30. | 2123-1633D1 | [3] | PIN;SPRING |
| 31. | S6500450 | [1] | RING;SNAP |
| 32. | S6500500 | [3] | RING;STOP |
| 33. | S6500850 | [1] | RING;STOP |
| 34. | 2213-1053B | [1] | COVER;FRONT |
| 35. | S0112261 | [8] | BOLT |
| 36. | 2401-1031F | [1] | GEAR;PINION |
| 36. | 2401-1031G | [1] | GEAR;PINION |
| 37. | 2403-1039A | [1] | PLATE;LOCK |
| 38. | 2120-1363 | [4] | BOLT |
| 39. | 2126-9001 | [2] | WIRE |
| 4. | 2104-1004C | [1] | GEAR;RING(NO.2) |
| 4. | 2104-1004E | [1] | GEAR;RING(NO.2) |
| 40. | S5102901 | [4] | . WASHER;SPRING |
| 41. | 2536-1002 | [6] | MAGNET |
| 42. | 2180-1236 | [1] | O-RING ID221.94XW3.53 |
| 5. | 2101-1006D | [3] | GEAR;PLANETARY(NO.2) |
| 5. | 2101-1006E | [3] | GEAR;PLANETARY(NO.2) |
| 6. | 2101-1005G | [1] | GEAR;SUN(NO.2) |
| 6. | 2101-1005H | [1] | GEAR;SUN(NO.2) |
| 7. | 2104-1005C | [1] | GEAR;RING(NO.1) |
| 8. | 2101-1031 | [3] | GEAR;PLANETARY(NO.1) |
| 9. | 2101-1032 | [1] | GEAR;SUN(NO.1) |
