Excavator ZX200-3 ZX200 Slewing Gearbox 9196963 Swing Gear Box
Excavator ZX200-3 swing reduction ZX200 Slewing gearbox 9196963 swing gearbox
| Product name: | ZX200-3 |
| Place of Origin: | China(mainland) |
| Model: | ZX200-3 |
| Part number: | 9196963 |
| MOQ: | 1 PCS |
| Payment term: | T/T & & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |

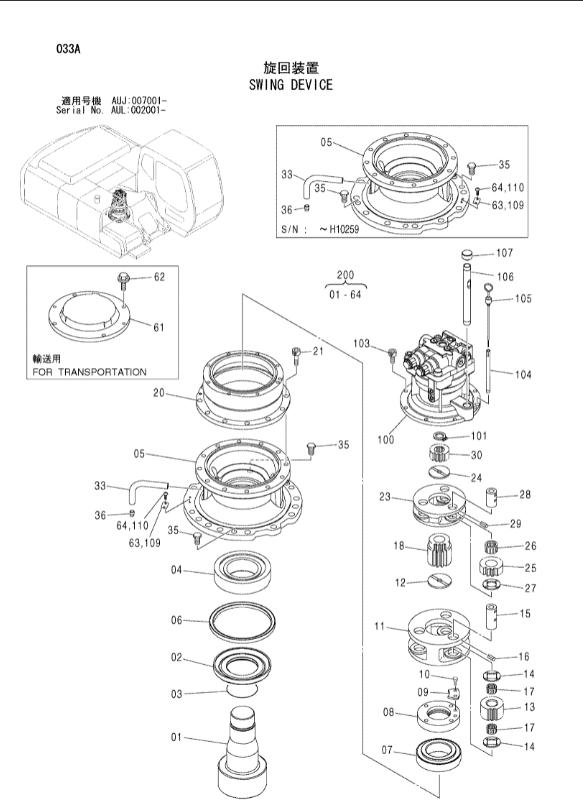

Parts on group
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| 01. | 2044634 | [1] | SHAFT;PROP. |
| 02. | 3083742 | [1] | SLEEVE |
| 03. | A811120 | [1] | O-RING |
| 04. | 4402481 | [1] | BRG.;ROL. |
| 05. | 1027617 | [1] | HOUSING |
| 05. | 1032876 | [1] | HOUSING |
| 06. | 4411535 | [1] | SEAL;OIL |
| 07. | 4402637 | [1] | BRG.;ROL. |
| 08. | 3086064 | [1] | NUT |
| 09. | 4411122 | [1] | PLATE;LOCK |
| 10. | J901020 | [2] | BOLT |
| 11. | 1026662 | [1] | CARRIER |
| 12. | 4187590 | [1] | PLATE;THRUST |
| 13. | 3084729 | [3] | GEAR;PLANETARY |
| 14. | 4336929 | [6] | PLATE;THRUST |
| 15. | 4336925 | [3] | PIN |
| 15. | 4488904 | [3] | PIN |
| 16. | 4027427 | [3] | PIN;SPRING |
| 17. | 4427630 | [6] | BRG.;NEEDLE |
| 17. | 4461644 | [6] | BRG.;NEEDLE |
| 17. | 4631475 | [6] | BRG.;NEEDLE |
| 18. | 3080912 | [1] | GEAR;SUN |
| 20. | 1025957 | [1] | GEAR;RING |
| 21. | M341645 | [12] | BOLT;SOCKET |
| 23. | 1025912 | [1] | CARRIER |
| 24. | 4403371 | [1] | PLATE;THRUST |
| 25. | 3082517 | [3] | GEAR;PLANETARY |
| 26. | 4404506 | [3] | BRG.;NEEDLE |
| 27. | 4403082 | [3] | PLATE;THRUST |
| 28. | 4336923 | [3] | PIN |
| 29. | 4051262 | [3] | PIN;SPRING |
| 30. | 3084056 | [1] | GEAR;SUN |
| 33. | 3089362 | [1] | PIPE |
| 35. | 4445352 | [2] | PLUG |
| 36. | 94-2012 | [1] | PLUG |
| 61. | 3090308 | [1] | COVER |
| 62. | J011230 | [4] | BOLT;SEMS |
| 62. | J271230 | [4] | BOLT;SEMS |
| 63. | 3053093 | [1] | NAME-PLATE |
| 64. | M492564 | [2] | SCREW;DRIVE |
| 100. | 4398514 | [1] | MOTOR;OIL |
| 101. | 991342 | [1] | RING;RETAINING |
| 103. | M341228 | [8] | BOLT;SOCKET |
| 103. | 4614096 | [8] | BOLT;SOCKET |
| 104. | 4264452 | [1] | PIPE |
| 105. | 3074223 | [1] | GAUGE;LEVEL |
| 106. | 4332658 | [1] | PIPE |
| 107. | 4343365 | [1] | CAP |
| 109. | 3053093 | [1] | NAME-PLATE |
| 110. | M492564 | [2] | SCREW;DRIVE |
| 200. | 9196963 | [1] | SWING DEVICE |
