Excavator R305-9 R305 Slewing Gearbox 31Q8-11141
Excavator R305-9 swing reduction R305 Slewing gearbox 31Q8-11141 swing gearbox
| Product name: | R305-9 Swing gearbox |
| Place of Origin: | China(mainland) |
| Model: | R305-9 |
| Part number: | 31Q8-11141 |
| MOQ: | 1 PCS |
| Payment term: | T/T & & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |

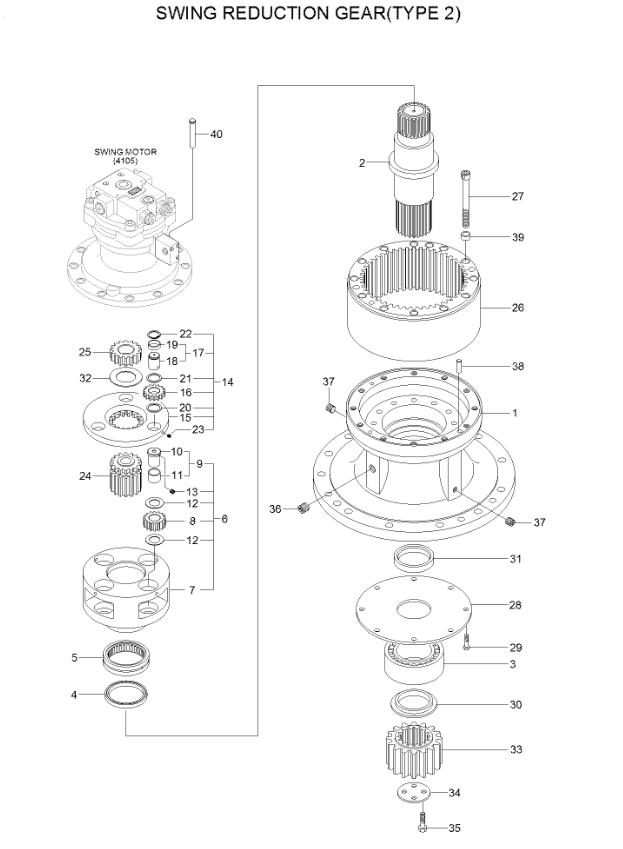

Parts on group
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| N*. | 31N8-10200 | [1] | SWING MOTOR ASSY |
| *-1. | 31Q8-11141 | [1] | SWING REDUCTION GEAR |
| 1. | XKAQ-00451 | [1] | CASING |
| 2. | XKAQ-00760 | [1] | SHAFT-DRIVE |
| 3. | XKAQ-00146 | [1] | BEARING-ROLLER |
| 4. | XKAQ-00149 | [1] | SEAL-OIL |
| 5. | XKAQ-00027 | [1] | BEARING-ROLLER |
| 6. | XKAQ-00467 | [1] | CARRIER ASSY 2 |
| 7. | XKAQ-00468 | [1] | CARRIER-2 |
| 8. | XKAQ-00469 | [4] | GEAR-PLANET 2 |
| 9. | XKAQ-00470 | [4] | PIN ASSY 2 |
| N10. | XKAQ-00471 | [1] | PIN-2 |
| N11. | XKAQ-00472 | [1] | BUSHING 2 |
| 12. | XKAQ-00435 | [8] | WASHER-THRUST |
| 13. | XKAQ-00050 | [4] | PIN-SPRING |
| 14. | XKAQ-00473 | [1] | CARRIER ASSY 1 |
| 15. | XKAQ-00453 | [1] | CARRIER-1 |
| 16. | XKAQ-00454 | [3] | GEAR-PLANET 1 |
| 17. | XKAQ-00440 | [3] | PIN ASSY-1 |
| N18. | XKAQ-00441 | [3] | PIN-1 |
| N19. | XKAQ-00079 | [3] | BUSHING-1 |
| 20. | XKAQ-00417 | [3] | PLATE-SIDE 1 |
| 21. | XKAQ-00416 | [3] | PLATE-SIDE 2 |
| 22. | XKAQ-00041 | [3] | RING-STOP |
| 23. | XKAQ-00048 | [3] | PIN-SPRING |
| 24. | XKAQ-00455 | [1] | GEAR-SUN 2 |
| 25. | XKAQ-00456 | [1] | GEAR-SUN 1 |
| 26. | XKAQ-00457 | [1] | RING-GEAR |
| 27. | XKAQ-00466 | [12] | BOLT-SOCKET |
| 28. | XKAQ-00626 | [1] | COVER PLATE |
| 29. | XKAQ-00064 | [8] | BOLT-HEX |
| 30. | XKAQ-00627 | [1] | SPACER |
| 31. | XKAQ-00628 | [1] | RING-SPACER |
| 32. | XKAQ-00447 | [1] | PLATE-THRUST-3 |
| 33. | XKAQ-00629 | [1] | GEAR-PINION |
| 34. | XKAQ-00761 | [1] | PLATE-LOCK |
| 35. | XKAQ-00756 | [4] | BOLT-HEX |
| 36. | XKAQ-00049 | [1] | PLUG |
| 37. | XKAQ-00066 | [2] | PLUG |
| 38. | XKAQ-00072 | [2] | PIN-KNOCK |
| N39. | XKAQ-00631 | [4] | BUSHING-2 |
| 40. | XKAQ-00800 | [1] | AIR BREATHER ASSY |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
