R370-7 R380LC-9 R360-7 Excavator Swing Gearbox 31QA-10140 31NA-10150

Price Negotiable
Price: Negotiable Price
MOQ: 1 piece
Delivery Time: 1-7days
Brand: Belparts
Product Description

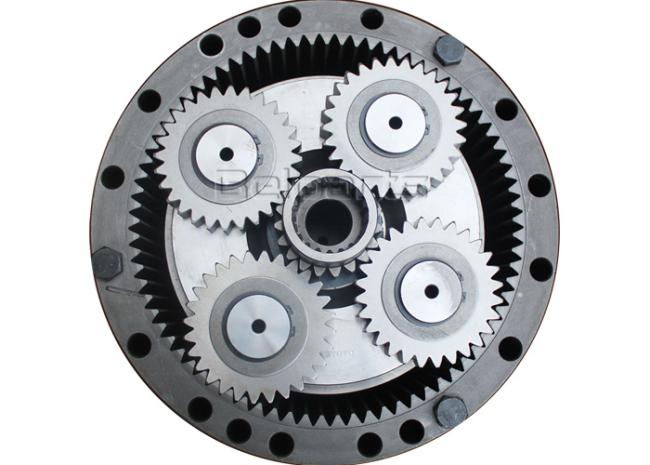

Excavator R370-7 R380LC-9 R360-7 swing reduction 31QA-10140 31NA-10150 swing gearbox



Product name: R370-7 R380LC-9 R360-7 Swing Gearbox
Place of Origin: China(mainland)
Model: R370-7 R380LC-9 R360-7
Part number: 31QA-10140 31NA-10150
MOQ: 1 PCS
Payment term: T/T & & Paypal
Delivery time: Within 2 days after receiving the payment
Packing: Standard exporting packing or as required











Parts on group

Pos. Part No Qty Parts name Comments
*-2. 31QA-10140 [1] SWING REDUCTION GEAR
*-2. 31QA-10141 [1] SWING REDUCTION GEAR
*-2. 31QA-10142 [1] SWING REDUCTION GEAR
*-2. 31QA-10141AR [1] SWING REDUCTION GEAR
1. XKAQ-00738 [1] CASING
2. XKAQ-00739 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00171 [1] RING-SPACER
5. XKAQ-00149 [1] SEAL-OIL
6. XKAQ-00027 [1] BEARING-ROLLER
7. XKAQ-00263 [1] CARRIER ASSY-NO 2 NOT USED
7. XKAQ-00264 [1] CARRIER ASSY-NO 2
8. XKAQ-00740 [1] CARRIER 2
9. XKAQ-00741 [4] GEAR-PLANETARY 2
10. XKAQ-00742 [4] PIN ASSY 2
11. XKAQ-00254 [1] PIN 2
N12. XKAQ-00255 [1] BUSHING 2
13. XKAQ-00165 [1] PIN-SPRING
14. XKAQ-00156 [4] WASHER-THRUST
15. XKAQ-00050 [4] PIN-SPRING
16. XKAQ-00412 [1] CARRIER ASSY 1
17. XKAQ-00743 [1] CARRIER 1
18. XKAQ-00414 [4] GEAR-PLANETARY 1
19. XKAQ-00744 [4] PIN 1
20. XKAQ-00030 [4] CAGE-NEEDLE
21. XKAQ-00417 [4] PLATE 1-SIDE
22. XKAQ-00416 [4] PLATE 2-SIDE
23. XKAQ-00041 [4] RING-STOP
24. XKAQ-00048 [1] PIN-SPRING
25. XKAQ-00260 [1] RING-THRUST
26. XKAQ-00745 [1] GEAR-SUN 2
27. XKAQ-00746 [1] GEAR-SUN 1
28. XKAQ-00420 [1] GEAR-RING
29. XKAQ-00072 [2] PIN-KNOCK
30. XKAQ-00747 [1] PLATE-COVER
31. XKAQ-00148 [8] BOLT-HEX
32. XKAQ-00748 [1] SPACER
33. XKAQ-00749 [1] GEAR-PINION
34. XKAQ-00299 [1] PLATE-LOCK
35. XKAQ-00042 [4] BOLT-HEX
36. XKAQ-00292 [2] WASHER-LOCK
37. XKAQ-00274 [2] PLUG
38. XKAQ-00049 [1] PLUG
39. XKAQ-00259 [16] BOLT-SOCKET
40. XKAQ-00750 [1] COVER
40. XKAQ-00982 [1] COVER
41. XKAQ-00751 [1] O-RING
42. XKAQ-00170 [4] BOLT-SOCKET
43. XKAQ-00066 [1] PLUG
45. XKAQ-00143 [1] POST-AIR BREATHER
45-1. XKAQ-00143 [1] POST-AIR BREATHER
45-2. XKAQ-00324 [1] CAP-BREATHER
46. XKAQ-00167 [1] PIPE-GAUGE
47. XKAQ-00166 [1] BAR-GAUGE
