R140-9 Excavator Swing Gearbox R140 Slewing Gearbox 31Q4-11141
Excavator R140-9 swing reduction R140 Slewing gearbox 31Q4-11141 swing gearbox
| Appliion | Excavator |
| Part name | Belparts swing gearbox |
| Material | Steel |
| Model | R140-9 |
| MOQ | 1PC |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |

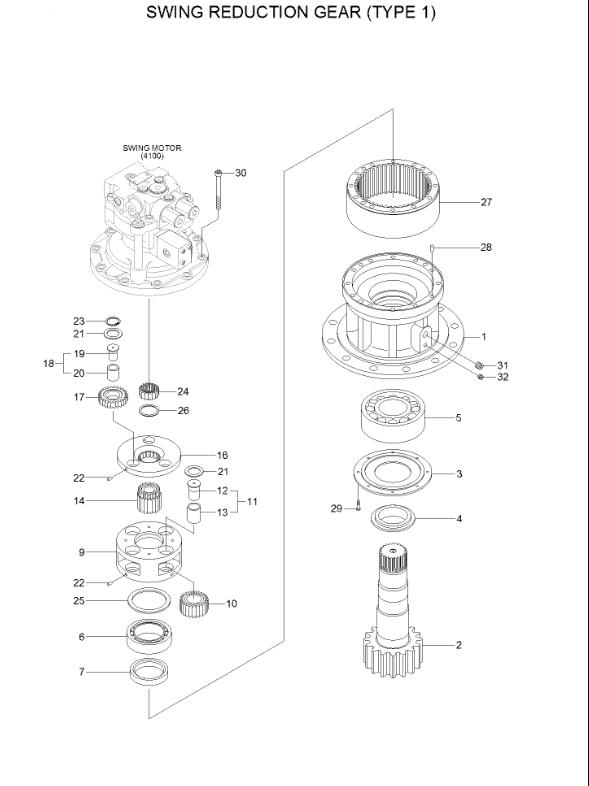

Parts on group
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| N*. | @ | [1] | SWING MOTOR ASSY | *-1,*-2 |
| *-2. | 31Q4-11140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11142 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11142AR | [1] | SWING REDUCTION GEAR | |
| 1. | XKAQ-00511 | [1] | CASING | |
| 2. | XKAQ-00512 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00513 | [1] | PLATE-COVER | |
| 4. | XKAQ-00514 | [1] | SPACER | |
| 5. | XKAQ-00515 | [1] | BEARING-SPH ROLLER | |
| 6. | XKAQ-00089 | [1] | BEARING-CYL ROLLER | |
| 7. | XKAQ-00087 | [1] | SEAL-OIL | |
| 8. | XKAQ-00809 | [1] | CARRIER ASSY 2 | |
| 9. | XKAQ-00516 | [1] | CARRIER 2 | |
| 10. | XKAQ-00517 | [4] | GEAR-PLANET 2 | |
| 10. | XKAQ-00810 | [4] | GEAR-PLANET 2 | |
| 11. | XKAQ-00518 | [4] | PIN ASSY 2 | |
| 11. | XKAQ-00811 | [4] | PIN ASSY 2 | |
| N12. | XKAQ-00812 | [1] | PIN 2 | |
| N13. | XKAQ-00813 | [1] | BUSHING 2 | |
| 21. | XKAQ-00093 | [4] | WASHER-THRUST(B) | |
| 22. | XKAQ-00086 | [4] | PIN-SPRING | |
| 14. | XKAQ-00519 | [1] | GEAR-SUN 2 | |
| 15. | XKAQ-00814 | [1] | CARRIER ASSY 1 | |
| 16. | XKAQ-00520 | [1] | CARRIER 1 | |
| 17. | XKAQ-00521 | [3] | GEAR-PLANET 1 | |
| 17. | XKAQ-00815 | [3] | GEAR-PLANET 1 | |
| 18. | XKAQ-00522 | [3] | PIN ASSY 1 | |
| 18. | XKAQ-00816 | [3] | PIN ASSY 1 | |
| N19. | XKAQ-00817 | [1] | PIN 1 | |
| N20. | XKAQ-00818 | [1] | BUSHING 1 | |
| 21. | XKAQ-00093 | [3] | WASHER-THRUST(B) | |
| 22. | XKAQ-00086 | [3] | PIN-SPRING | |
| 23. | XKAQ-00085 | [3] | RING-STOP | |
| 24. | XKAQ-00523 | [1] | GEAR-SUN 1 | |
| 25. | XKAQ-00084 | [1] | RING-STOP | |
| 26. | XKAQ-00524 | [1] | PLATE-SIDE 1 | |
| 27. | XKAQ-00525 | [1] | GEAR-RING | |
| 27. | XKAQ-00782 | [1] | GEAR-RING | |
| 28. | XKAQ-00091 | [4] | PIN-KNOCK | |
| 29. | XKAQ-00526 | [9] | BOLT-HEX | |
| 30. | XKAQ-00527 | [10] | BOLT-SOCKET | |
| 31. | XKAQ-00049 | [1] | PLUG | |
| 32. | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
Company Description
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox.
The founder of our company has more than 9 years experience in importing and exporting and is able to help customers solve various import and export problems. We maintain good long-term relationships with all kinds of accessories factories. Thus, we can help develop and produce new products according to customer’s requirements or samples, providing technical support to customers and offering perfect services.
