Excavator ZX110 ZX130 Swing Reduction ZX120 Slewing Gearbox 9196343
Excavator E70B swing reduction 70 E70 Slewing gearbox 099-6551 swing gearbox
| Appliion | Excavator |
| Part name | Belparts swing gearbox |
| Material | Steel |
| Model | ZX110 ZX130 ZX120 |
| MOQ | 1PC |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |

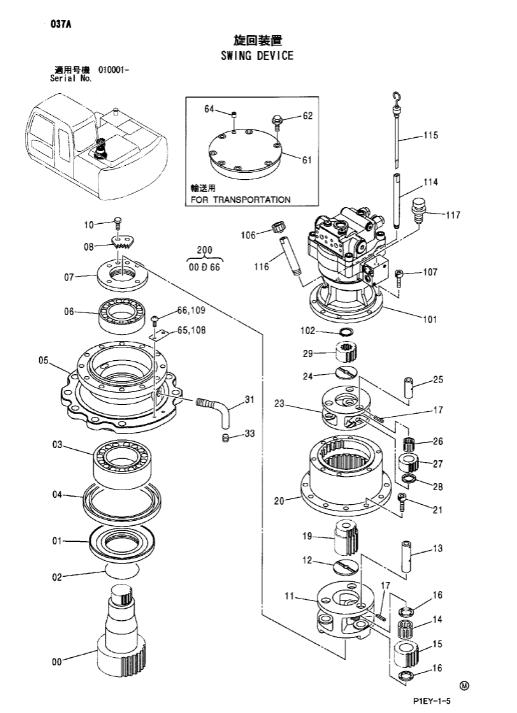

Parts on group
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 2044629 | [1] | SHAFT;PROP. | |
| 01. | 3083710 | [1] | SLEEVE | |
| 02. | A811095 | [1] | O-RING | |
| 03. | 4430041 | [1] | BRG.;ROL. | |
| 04. | 4411143 | [1] | SEAL;OIL | |
| 05. | 1027901 | [1] | HOUSING | |
| 06. | 4408119 | [1] | BRG.;ROL. | |
| 07. | 3083674 | [1] | NUT | |
| 08. | 4407745 | [1] | PLATE;LOCK | |
| 10. | J901020 | [2] | BOLT | |
| 11. | 2042965 | [1] | CARRIER | |
| 12. | 4176070 | [1] | PLATE;THRUST | |
| 13. | 4408102 | [3] | PIN | |
| 14. | 4414855 | [3] | BRG.;NEEDLE | |
| 15. | 3084940 | [3] | GEAR;PLANETARY | |
| 16. | 4414833 | [6] | PLATE;THRUST | |
| 17. | 4116308 | [6] | PIN;SPRING | |
| 19. | 3092035 | [1] | GEAR;SUN | |
| 20. | 2045146 | [1] | GEAR;RING | |
| 21. | M341440 | [12] | BOLT;SOCKET | |
| 23. | 2042964 | [1] | CARRIER | |
| 24. | 4244904 | [1] | PLATE;THRUST | |
| 25. | 4408122 | [3] | PIN | |
| 26. | 4430040 | [3] | BRG.;NEEDLE | |
| 27. | 3083741 | [3] | GEAR;PLANETARY | |
| 28. | 4408002 | [3] | PLATE;THRUST | |
| 29. | 3083740 | [1] | GEAR;SUN | |
| 31. | 3087949 | [1] | PIPE | |
| 33. | 94-2012 | [1] | PLUG | |
| 61. | 8082514 | [1] | COVER | (for transportation) |
| 62. | J011040 | [7] | BOLT;SEMS | |
| 62. | J271040 | [7] | BOLT;SEMS | T J901040 |
| 62. | J271040 | [7] | BOLT;SEMS | T J222010 (for transportation) |
| 64. | 94-2011 | [1] | PLUG | (for transportation) |
| 65. | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 66. | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 101. | 9182929 | [1] | MOTOR;OIL | I 9196962 (for assembly of machine) |
| 101. | 9196962 | [1] | MOTOR;OIL | (for transportation) |
| 102. | 927488 | [1] | RING;RETAINING | |
| 106. | 4298608 | [1] | CAP | |
| 107. | M341025 | [7] | BOLT;SOCKET | |
| 108. | 3053093 | [1] | NAME-PLATE | |
| 109. | M492564 | [2] | SCREW;DRIVE | |
| 114. | 4449144 | [1] | PIPE | |
| 115. | 3090862 | [1] | GAUGE;LEVEL | |
| 116. | 4449182 | [1] | PIPE | |
| 117. | 4436535 | [1] | SENSOR;PRES. | |
| 200. | 9196343 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
