HOWO 371hp 20 Ton 30Tons 20 Cubic Meters 10 Wheeler Heavy Duty Dump Truck
HOWO 371hp 20 Ton 30Tons 20 Cubic Meters 10 Wheeler Heavy Duty Dump Truck
1. 10wheelers tipper specifications
| Overall Dimension | 8600×2496×3450(mm) (L*W*H) | ||
| Payload | 25000kg | Curb Weight | 12130kg |
| Front Overhang | 1500mm | Rear Overhang | 1670mm |
| Wheelbase | 3825mm +1350mm | ||
| CHASSIS | |||
| Chassis Brand | SINOTRUK HOWO | ||
| Driving Type | 6x4 | ||
| Cab |
HW70/76, left/right hand drive, air-conditioner, single/double bed, up/down and front/back adjustable steering wheel,new European style whole heating and ventilating system, with electronic controlled model,with four points suspension & absorber and stabilizer equipment, all the truck with the double-locking safety belts and outside sun visor |
||
| Engine and Power |
Brand: SINOTRUK, diesel engine, WD615.69,WD615.62,WD615.87,WD615.47, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II,EuroIII, Euro IV,EuroV,emission standard |
||
| Steering | ZF8198, hydraulic steering with power assistance | ||
| Transmission | HW19710, 10 forward speeds and 2 reverse | ||
| Clutch | Model: 430, diaphragm clutch | ||
| Front Axle | HF9, load capacity 9 ton, drum brake | ||
| Rear Axle | HC16 tandem axle, casting axle housing, double reduction(central reduction+wheel reduction),load capacity 13000kg x2, ratio 5.73 5.45 4.77 | ||
| Tire | 11.00-20,11.00R20,12.00-20,12.00R20.11units including 1 spare tire | ||
| CARGO BODY | |||
| Inside Dimension | 5400/5600/5800mm*2300mm*1500mm(L*W*H) | ||
| Hydraulic Cylinder | Ventral T-type lift system,front tipping is optional | ||
| Steel sheet thickness | Floor 8mm, side 6mm | ||
| Tailgate | One-piece tailgate with upper articulation, safety lock system | ||
| 2. 1-40 Tons Dump Truck | ||

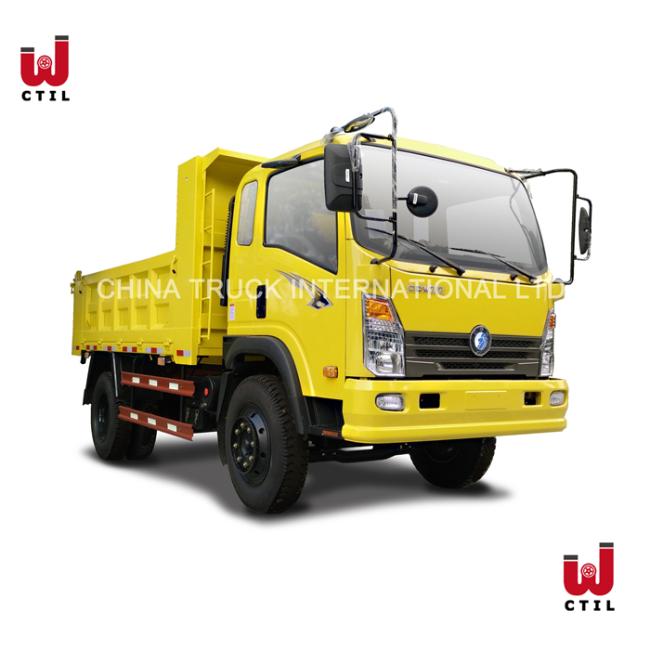

| <10tons |  |
Driving Model:4x2 Engine:65hp,90hp,110hp,115hp,130hp,160hp Gearbox: Manuel Transmission Tire:8.25,9.0,10.0 Hydraulic System:Middle lift or Front lift payload:3-15t
|

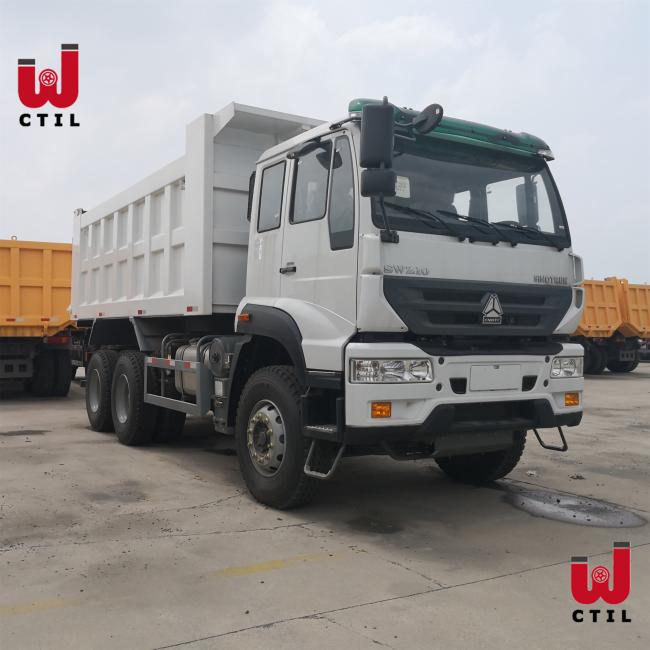

| 15tons to 25tons |  |
Cabin:L2000, Long Cab,with one bed Engine: 266hp,290hp,336hp Gearbox:Manual Transmission with 10 forwards and 2 reverses Tire:1200R20 Radial tire, 12R22.11Tubless tire Hydraulic System:Middle lift or front lift Box Length:4.8-5.4m
|

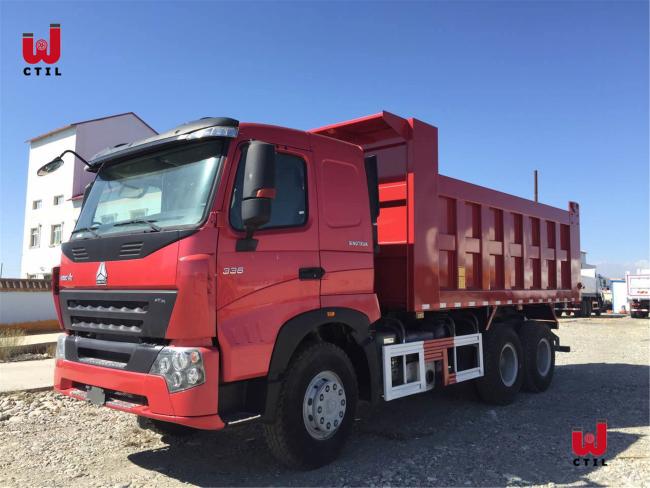

| 25tons to 40tons |  |
Cabin: A7-W one sleeper Engine: 266hp,290hp,336hp,371hp Gearbox: Manual Transmission with 10 forwards and 2 reverses Tire:1200R20 Radial tire, 12R22.11Tubless tire Hydraulic System:Middle lift or front lift Box Length:4.8-5.6m
|
| 3. How can we choose truck body? | ||
| Transport medium | Floor(mm) | Side(mm) |
| Soil or Stone | 8 | 4 |
| Construction Waste | 10 | 6 |
| Big Ore | 12 | 8 |
| Coal | 6 | 4 |
| clay | 8 | 4 |
| Grain or Chemical fertilizer | 6 | 4 |

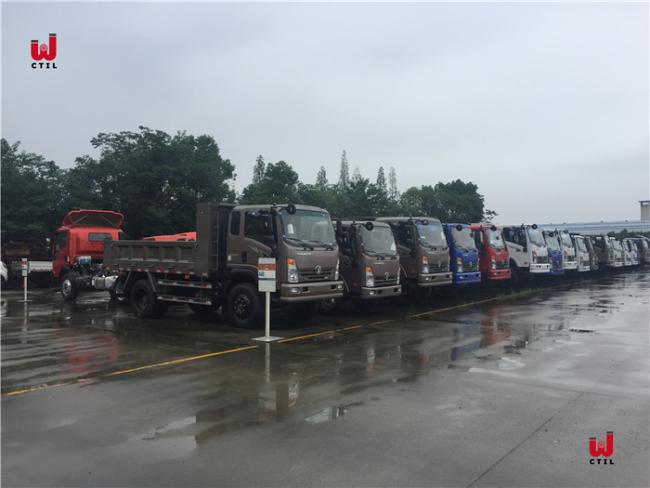

4. Truck and parts warehouse

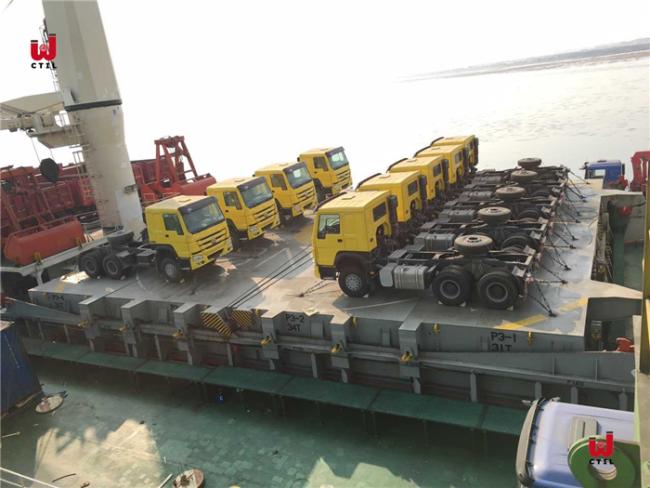

5. Trucks we exported to South America, Africa and Southeast Asia
