Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck
-
Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck
-
-
1. The characteristic of SINOTRUK HOWO dump truck:
-
1)Because the loading and unloading truck can automatically dump a certain angle of unloading, greatly reducing the discharge time and labor, shortening the transportation cycle, improving production efficiency and reducing transportation costs, it is a common transportation and unloading.
-
2)The dump truck has four parts: the engine, the chassis, the cab and the upper body.
-
The structure of the engine, the chassis and the cab is the same as that of a general truck. The carriage is willing to roll backwards or sideways. There is a cab safety shield in the front section of the truck. The hydraulic tilting mechanism of the heavy duty tipper truck is composed of a hydraulic oil tank, a hydraulic pump, a distribution valve, and a lifting hydraulic cylinder, and the piston rod is pushed to tilt the cargo box. By controlling the piston rod movement, the dumper truck can be stopped at any position that needs to load or unload goods. The cabin is reset using its own gravity and hydraulic control.
-

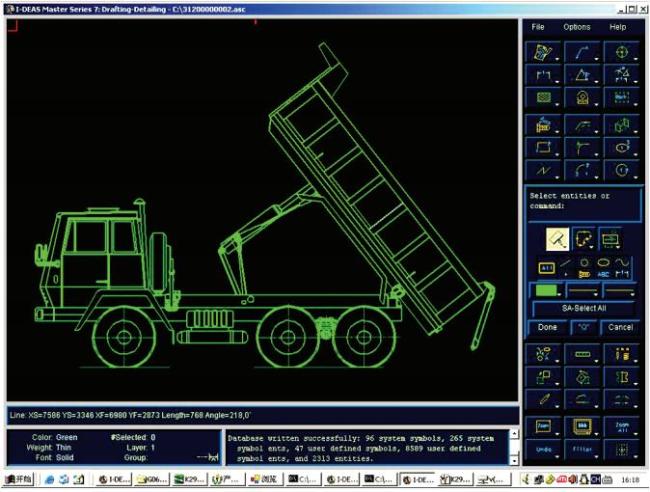

![tipper]()
-
-
2. Dump Truck Main Specifications:
-
Truck Model ZZ3257N3647A, Left Hand Drive or Right Hand Drive model Truck Brand SINOTRUK -HOWO Dimension(Lx W xH) 8545x2496x3386 Cargo body size (L*W*H, mm) 5800x2300x1400 Cargo body thickness(mm) bottom:8mm, side:6mm, or customized as you required Lift type of Carriage Ventral lifting or front tipping Approaching angle/Departure angle(°) 19/26 Overhang(front/rear) (mm) 1500/1739 Wheel base (mm) 3625+1350 Max speed(km/h) 75 Curb weight(kg) 12290 Loading Weight(kg) 25000 Fuel Tanker 300L with locking fuel cap Fuel consumption(L/100km) 32 Clutch Single-plate dry clutch Φ430mm Engine Model WD615.47,4- stroke direct injection diesel
engine, 6 cylinders in line with water cooling ,
Horse Power, 371HP Emission Standard EURO II Transmission Model HW 19710,10 forwards and 2 reverse Steering system Model ZF8098/ZF8118 hydraulic steering with power assistance Front axle HF9 Rear axle HC16 Tire 12.00R20, 12.00-20 Tips to build your truck body Transport medium Floor(mm) Side(mm) Soil or Stone 8 4 Construction Waste 10 6 Big Ore 12 8 Coal 6 4 clay 8 4 Grain or Chemical fertilizer 6 4 - Note: We not only have brand new customized truck, but also have many stocked trucks and used trucks, if you need, don't hesitate to contact us:manager@sinotruckexport.com

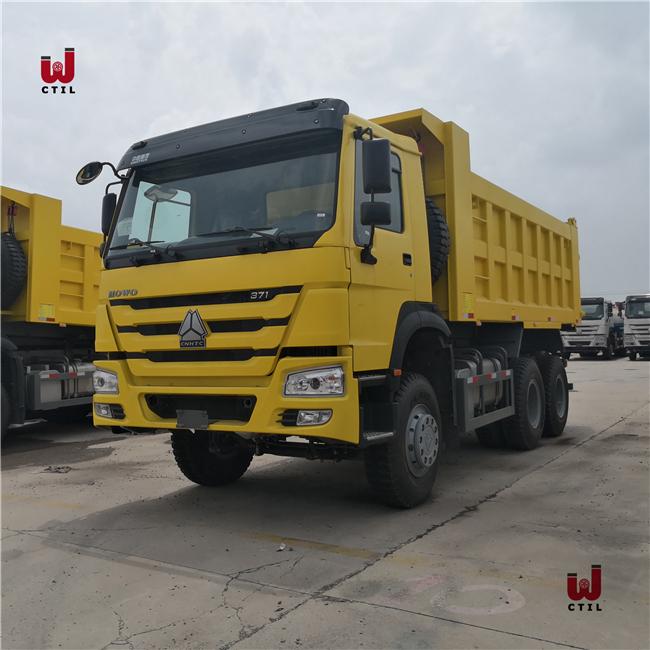

![20 ton dump truck]()

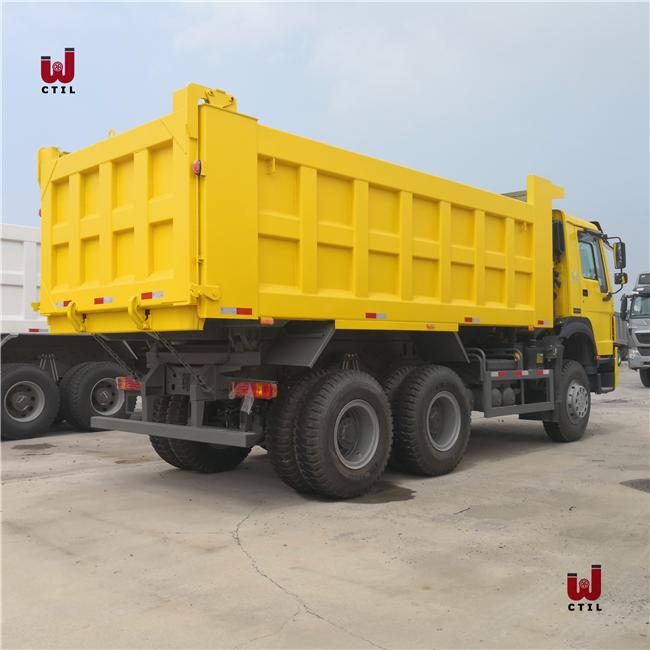

![gravel dump truck]()
