Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck
Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

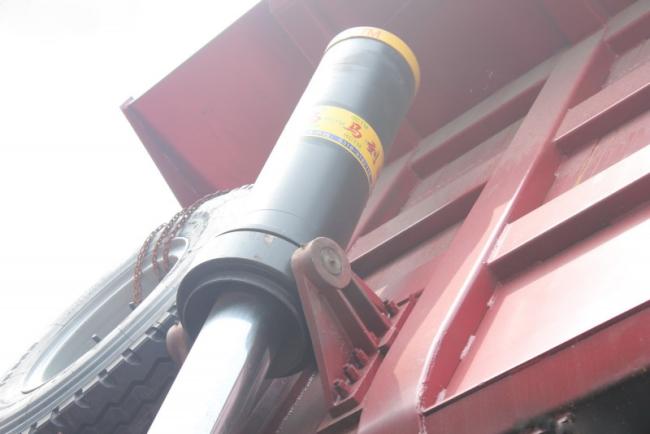

1. The dump trucks are divided into two types: tipping and lateral tilting. Through the control system, the piston rod is controlled, and the backward dumping is more common. The piston rod is pushed to tilt the carriage, and the bidirectional dumping is rare.As the loading compartment can automatically tip and discharge at a certain angle, the time and labor of the dumping can be greatly saved, the transportation cycle can be shortened, the production efficiency can be improved, and the transportation cost can be reduced. This is a commonly used transport vehicle
2. MAIN DESCRIPTION
| BRAND & MODE | HOWO ZZ3317N3567W | |
| Load Parameters | ||
| G. V. W. (kg) | 31000 | |
| Curb weight, toal (kg) | 15420 | |
| Loading capacity (kg) | 30000 | |
| Drive form | 8X4 | |
| Max. speed KM/h | 75KM/h | |
| Front axle capacity(KG) | 6300/7000 | |
| Rear axle capacity (KG) | 17700 | |
| Leaf spring | 14/13/14/13/12 | |
| Appr/Dep.:(°) | 19/26 | |
| Dimension Parameters | ||
| Dimension(mm) (L*W*H) | 10745,10545,10680,10245×2496×3450,3800 | |
| Cargo box | Dimension(L*W*H) | 7800,7600,7300×2300×1050 |
| Wheel base(mm) | 1800+3800+1350 | |
| Wheel trace(mm) | 2041/2041, 1830/1830 | |
| Configuration Parameters | ||
| Cabin | Cabin type | Single |
| Seating capacity | 2 | |
| Engine | Brand&Model | WD615.47 |
| Max. horsepower | 371HP | |
| Max. power | 273KW | |
| Max.output torque | 1350N·m | |
| Displacment(ml) | 9726 | |
| Combustion types | Diesel | |
| Gearbox | Brand&Model | HW19710 |
| Fuel tank capacity | 300L | |
| Emission standard | EURO 2 | |
3. Why choose SINOTRUK?
SINOTRUK is the most famous truck brand in China. Founded in 1958 and charged by the government, SINOTRUK has developed very well these years and been exported all over the world.
1 SINOTRUK government factory
2 Superior carrying capacity
3 Heavy loading
4 High speed
5 Fuel economy
6 Comfortable and cab
7 Good performance with low price
8 One year warranty

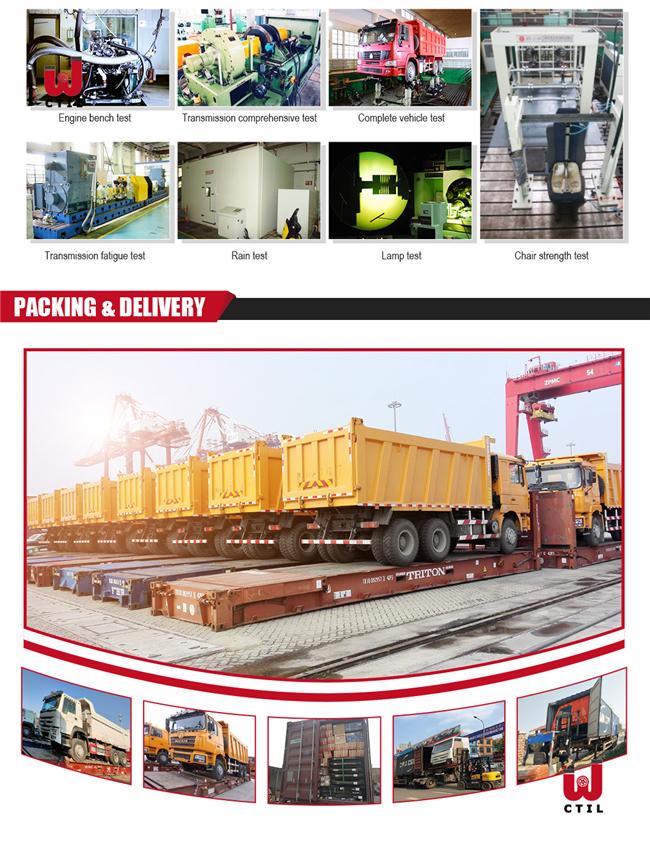

4. Product Experiments
Overall testing guarantees every vehicle is a competitive product Sinotruk owns professional road testing grounds for heavy trucks, so every new developed product will be tested by extremely strict professional experiments during development process
5.Packing&Shipping
Packing and transportation for SINOTRUK HOWO heavy dump truck tipper truck dumper truck by RO-RO ship and Bulk shipping

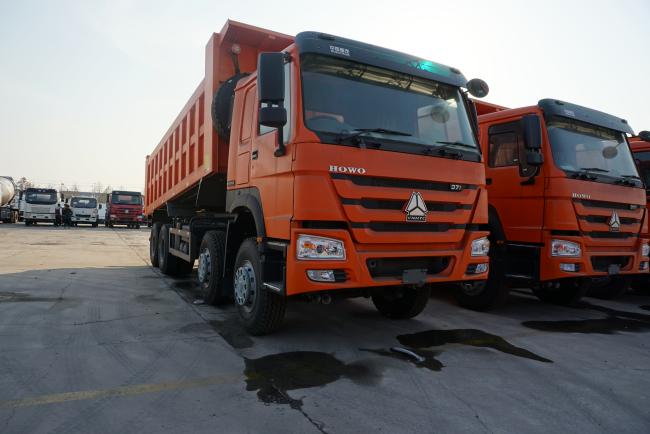

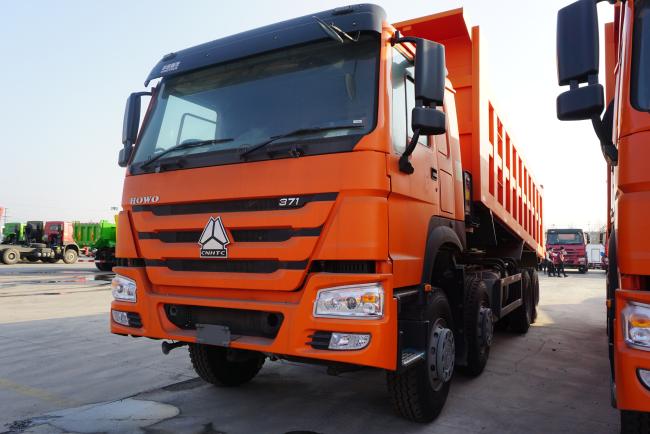

6. SINOTRUK HOWO Tipper Truck Photos
We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our 8x4 30 ton sinotruk howo 20 cubic meters dump truck for sale. For more info, contact us now.
