Heavy Duty 8L Haul Dump Truck 375HP 20 Ton Dump Truck

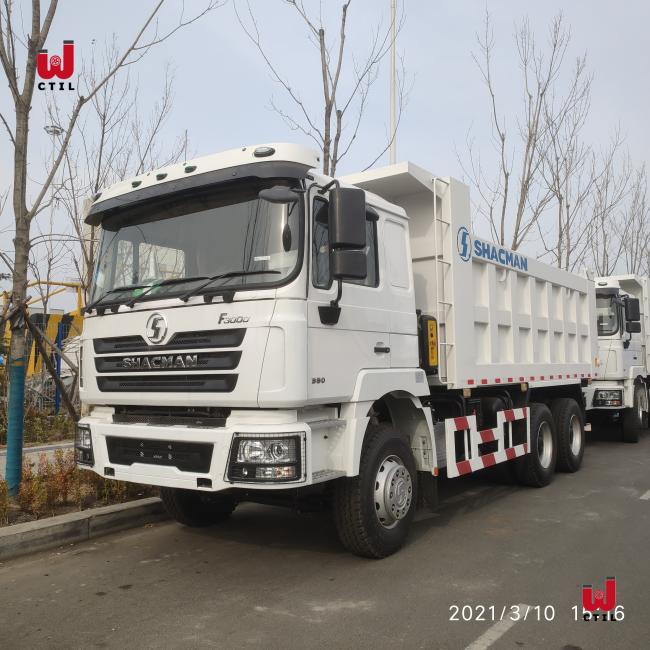

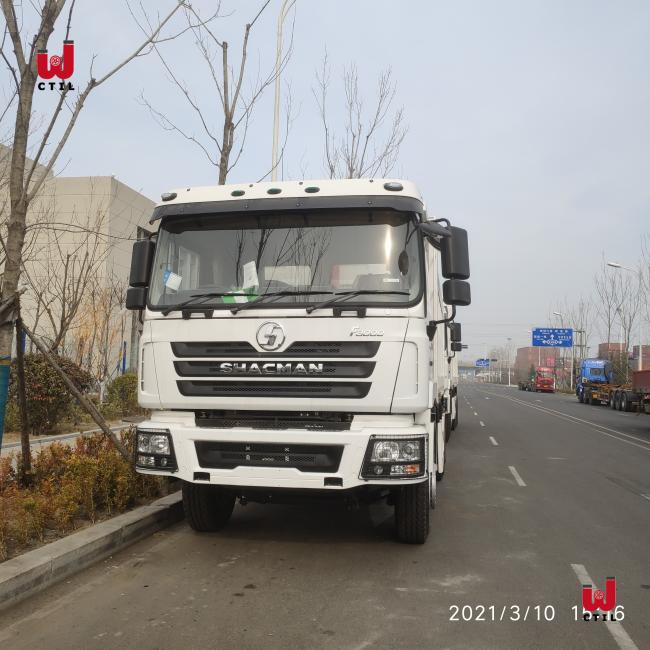

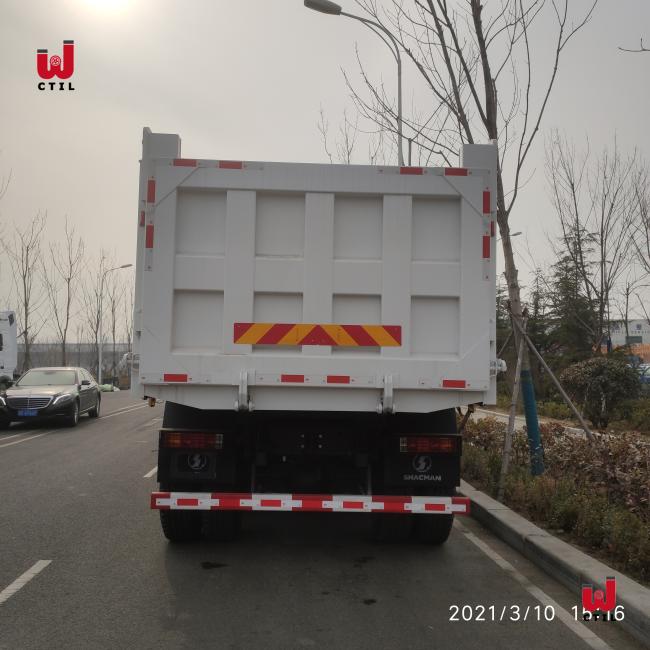

SHACMAN F3000 6x4 20-30 Ton Construction Work Heavy Duty Dumper Truck
The F3000 Series products are the latest success of SHACMAN. Introduced in 2009 it quickly became one of our top selling products.
The F3000 has an improved driver's cab utilizing advanced technologies from the German truck giant, MAN. The power of the F3000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. F3000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the F3000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The F3000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.
| Cabin | Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref. |
|||||||
| Vehicle Main Dimensions | (L x W x H)mm | 8600×2550×3450 | ||||||
| Wheel base (mm) | 3975+1400 | |||||||
| Wheel track (front/rear) (mm) | 2036/1860 | |||||||
| Approach/Departure angle(°) | 17/23 | |||||||
| Weight in KGS | Tare Weight | 12500 | ||||||
| Loading Capacity | 30000~40000kg | |||||||
| Front axles loading capacity | 9000 | |||||||
| Rear axles loading capacity | MAN 2x16000 | |||||||
| Max. driving speed(km/h) | 85 | |||||||
| Engine | Brand | Sinotruk | ||||||
| Model | WP12.375E50 | |||||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||||||
| Horse Power(HP) | 375HP | |||||||
| Emission standard | Euro III,eURO IV or Euro V | |||||||
| Gearbox | 12JSDZ240T, 12 forwards & 2 reverse | |||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |||||||
| Steering Gear | power steering, hydraulic steering with power assistance | |||||||
| Fuel tank (L) | 400 | |||||||
| Tire | 12.00R20 radial tire ,12 pieces with one spare | |||||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||||||
Packing:Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO.
