Sinotruk HOWO7 10 Wheelers Tractor Truck Head 6x4 371HP For Africa
Sinotruk HOWO7 6x4 371HP 10 Wheelers Tractor Truck Truck Head For Africa
Our main Overseas Business Scope
- All types of brand new and used heavy duty truck and light duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service&Maintenance
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
This dump truck we have new and used one,You can choose according to your requirement!
1. Dump Truck Main Specifications:(Configuration can be changed as required)
| Model | ZZ4257V3241V | |
| Cabin | HW76 cabin, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler | |
Engine |
Model | WD615.47 371HP |
| Horse Power (Hp/rpm) | 371/2200 | |
| Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
| Displacement (L) | 9.726 | |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine | |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
| Tire | 12.00R20 | |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank +600L | |
| Dead Weight (kg) | 9230 | |
| Gross Vehicle Weight (kg) | 33000 | |
| Gross Combination Weight (kg) | 80000 | |
| Overall Dimension(L*W*H)(mm) | 6800×2496×3718 | |
| Wheelbase(mm) | 3225+1350 | |
| Front/Rear Overhang( mm) | 1500/725 | |
| Wheel Track(Front/Rear)(mm) | 2022/1850 | |
| Min. Ground Clearance(mm) | 314 | |
| Approach/Departure Angle( °) | 16/70 | |
| Max. Speed (km/h) | 102 | |
| Max. Gradebility (%) | ≥40 | |
| The Fifth Wheel | 2"(50#) Option: 3.5"(90#) " |
|

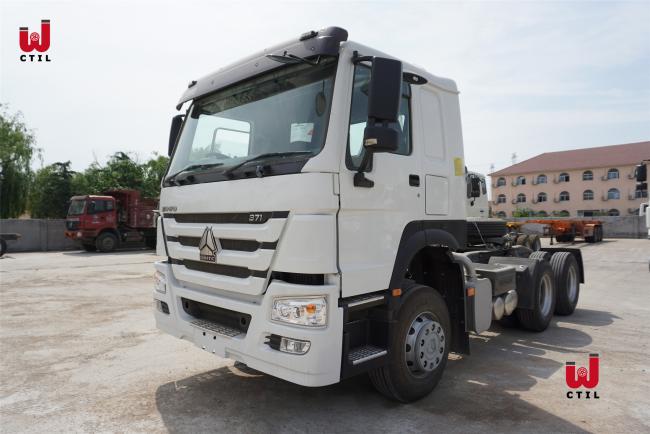

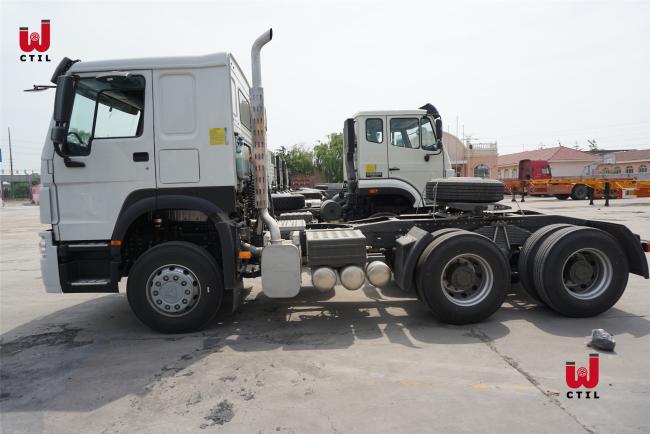

Brand new HOWO7 Tractor trucks in our warehouse, waiting for delivery. In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.
2.Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
3.Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO, flat rack
