10/100/1000Mbps SFP POE Fiber Media Converter with 1 PoE Port and 1 SFP Slot
10/100/1000Mbps SFP POE Fiber Media Converter with 1 PoE Port and 1 SFP Slot
Technical Parameters
| Protocol Standard |
IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-TX IEEE802.3x Flow Control IEEE802.3af Power over Ethernet |
| Wavelength | 1310nm 1490nm 1550nm |
| PoE power |
15.4W per port (IEEE802.3af) Wiring: Data & power provided over pairs 1/2 and 3/6 Cable:UTP cat.5 or higher |
| Fiber type |
Multi mode(MM): 62.5/125m.50/125m Single mode(SM): 9/125m |
| Distance |
Multi mode & Dual Fiber 550M Single mode & Single Fiber:20/40/60/80/120KM |
| Data rate | 10/100/1000Mpbs |
| Connector | RJ45,SC/ST/FC/LC |
| Diagnostic LED | Power Link/Activity |
| Power | DC48－57V |
| Power Consumption | <30w |
| Temperature | -10~50℃(Operating)-20~70℃(Storag) |
| Humidity | 10~90% non-codensing |
Product Overview
Media Converter are 10/100/1000Base T/TX to 1000Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE). which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Product features
♦ With PoE supported to save power infrascture cost.
♦ IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible.
♦ Connect to PoE switches.mid-span hubs.or otcher 802.3af Power Source Equipment(PSE).
♦ Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.
♦ Stand alone unit with mini design.

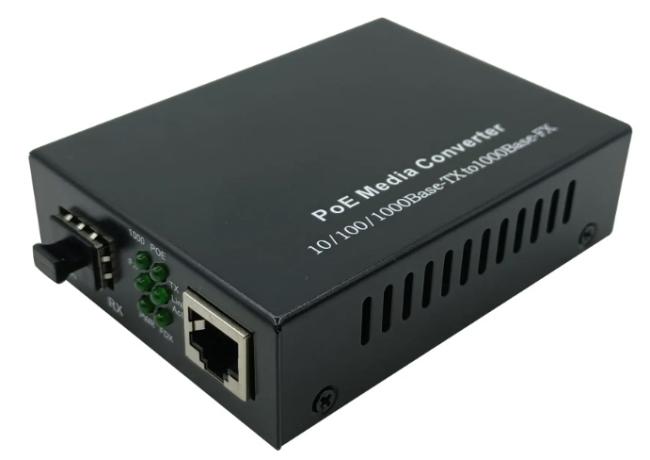

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
