FCC 1080P HDMI Extender With KVM USB 100M Over RJ45 Cable Cat5e/Cat6
1080P HDMI Extender with KVM USB 100M over RJ45 Cable Cat5e/Cat6
Product Overview
The HDMI extender, used for HD and non-condensed signal up to 100 meters, consists of a sender and a receiver. This product through a CAT5/5e or above Copper twisted pair (line sequence: white w/orange . orange. white w/green . blue . white w/blue. green. white w/brown . brown) extends those up to 1920 * 1080 @ 60HZ range resolution HD video, audio to the remote, as far as 100 meters, in the meantime, the transmitter provides a HDMI output port for local display. Different with conventional TCP/IP protocol 100 meters extender is this product image is a zero delay transmission, without image compression reduction is better; the products imported by the United States, real-time transmission of video and audio fidelity anti-interference circuit built-in lightning protection, which greatly improves the stability of products already working life. This product is widely used in the field of computer, home theater, monitoring, education, bank securities system etc..
Technical Paramaters
| Function | Transmission Signal Type | HDMI |
| Transmission Channel | 1 Line | |
| Transmission Distance | 100m | |
| Power Section | Power Supply Mode | External Power Supply |
| Adaptive Voltage Range | 12VDC 1A | |
| HDMI Performance And Interface | Support HDMI Version | HDMI1.3 |
| Support HDCP Version | HDCP1.2 | |
| HDMI Resolution | 1920*1080@60HZ downward Compatibility | |
| Peak Transfer Rate | 1.65Gbps | |
| Audio Signal Transmission Format | Digital Audio | |
| Interface | RJ45 Cable Cat5e/Cat6 and Above | |
| Performance adjustment | Picture effect | Receiver Length Knob Can Adjust the Screen Effect to the Best |
| Protection Level | Electrostatic Protection |
1A Contact Discharge 3 Level 1b Air Discharge Level 3 Implementation Standard: IEC61000-4-2 |
| Operational Environment | Working Temperature | 0~40℃ |
| Storage Temperature | -20～70℃ | |
| Humidity (No Condensation) | 0～95% | |
| Organism Attribute | Dimensions (L * w * h) | 97*98*28mm |
| Material | Engineering Grade Steel | |
| Weight | 0.8KG | |
| Security | Continue Working Time Before Breakdown | >100000 hours |

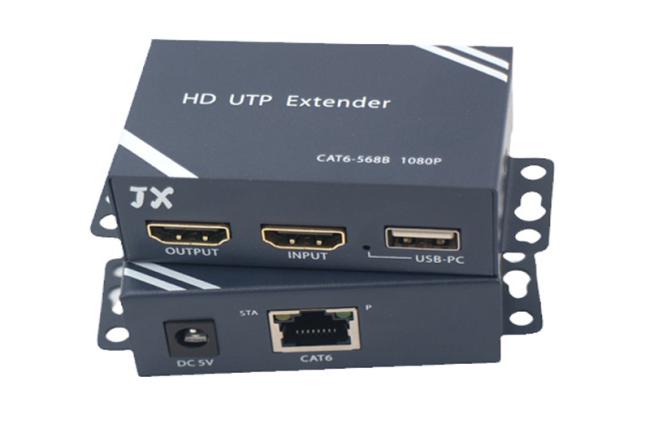

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
