3G-SDI Fiber Converter with Loop Out Fiber Optic Transceiver HD/SD/3G SDI Fiber Extender
3G-SDI Fiber Converter with Loop Out Fiber Optic Transceiver HD/SD/3G SDI Fiber Extender
Technical Parameter
| Fiber interface | Simplex LC |
| Transmission distance | 0-20Km (Other distance available) |
| Wavelength | 1310nm/1550nm |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 | |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Input Cable Specifications | ≤ 150m (Belden 1694A cable standard) |
| Output Cable Specifications | ≤ 150m (Belden 1694A cable standard) |
| Power adaptor | 5~12V DC |
| Power consumption | <5W |
| Dimensions (LxWxH) | 80 x 40 x 20 mm |
| Weight | 0.8KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview

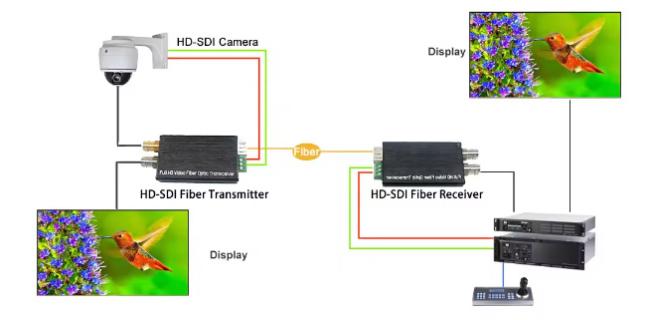

3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Features
► Supports bidirectional HD/3G SDI and embedded audio synchronous transmission;
► Dual color BNC design for easy identification of input and output signals (gold as input);
► Supports HDTV 1080P, 1080I, 720P. Maximum 1920* 1080@60Hz ;
► Strong compatibility, without selecting signal sources and devices;
► Adaptive technology, without setting adjustments, supports plug and play and hot swapping;
► The status indicator LED lights provide real-time monitoring of parameters such as power supply, optical path, and video

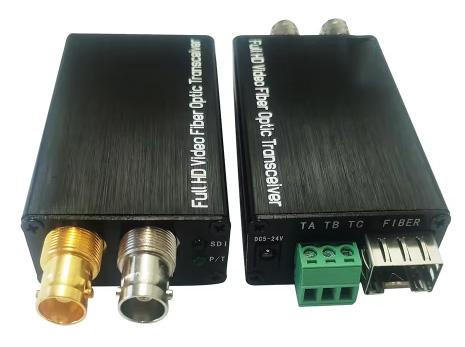

Product Picture
