60M 1080P HDMI Fiber Extender , CAT5E/6 HDMI To RJ45 Extender
HDMI to RJ45 Signal Extender 60M 1080P over Single CAT5E/6
Technical Parameters
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080P@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| IR | Interface | 3.5mm seat |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 38kHz | |
| UTP | Interface | RJ45 |
| Transmission distance | CAT5e/6 | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 3W | |
| Operating Temperature | -20℃ ~ +70℃ | |
| Operating Humidity | 5% ~ 90% |
Overview
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
◆ Locking power supply connector providesadded security
◆ Support HDMI 1.4a;
◆ Support highest video resolution 1080p/60Hz;
◆ Support 1.65Gbps data rate and tmds clock up to 165MHz;
◆ Support 8/10/12 bit deep color;
◆ Support AWG26 HDMI standard cable, input up to 15 metres, output up to 20 metres;
◆ Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX;
◆ No loss of quality;
◆ Install in minutes;
◆ Need DC5V/1A power supply.

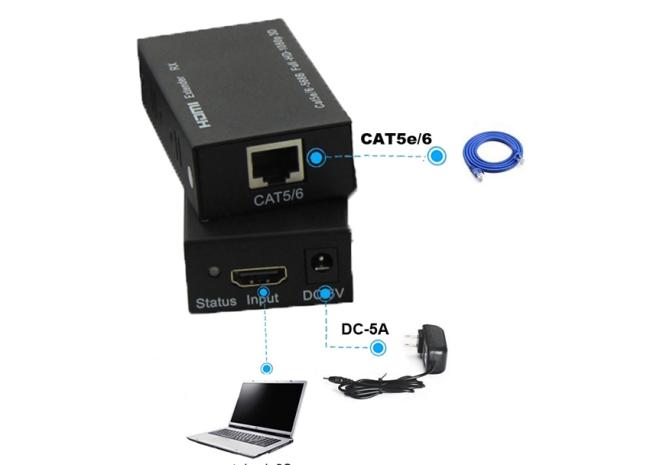

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
