AEO 1080p 1080i / 720p / 60M HDMI KVM Extender With USB Loop Out

Price Negotiable

Price: negotiation

MOQ: 1 pair

Delivery Time: 5-8 working days

Brand: AEO

Product Description

1080p 60M HDMI KVM extender with USB Loop-out

The main features of the 60m HDMI KVM Extender:

1: Support highest video resolution 1080p/60Hz;

2: 60M long distance transmission:

3: Both the TX and RX support 3.5MM left and right audio output;

4: Low power consumption, low temperature and high safety;

5: Support IR remote control;

6: Support USB mouse and keyboard extension.

Technical Paramaters:

Length of CAT-6 cable between Rx and TX	Up to 60 metres
HDMI Resolutions	1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth	150MHz
Max baud rate	4.5Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TTL)
HDMI cable distance	Input<=10m AWG26 HDMI standard cable output<=15m AWG26 HDMI standard cable
Power adapter format	Input:AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A
TX max working current RX max working current	450mA 350mA
Operating Temperature range	(-15 to +45 Centigrade)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	122x50x19mm
Weight	108g*2PCS

Overview

The HDMI KVM Extender uses single cat5e or cat6(recommended)cables instead of HDMl cable to transmit high definition signal up to 60 meters,cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

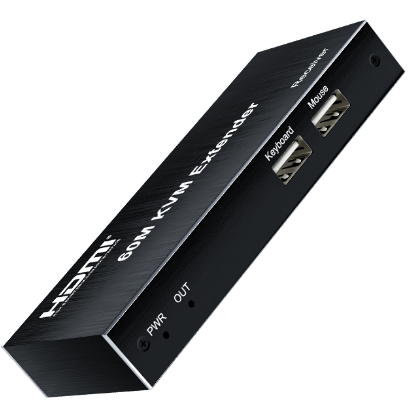

Product picture
