4k Over IP 150m HDMI Fiber Extender CAT5e / 6 Cable 3840X2160 / 30Hz
150m HDMI KVM Extender 4k over IP with KVM by CAT5e/6 cable 3840X2160/30Hz Support One to Many

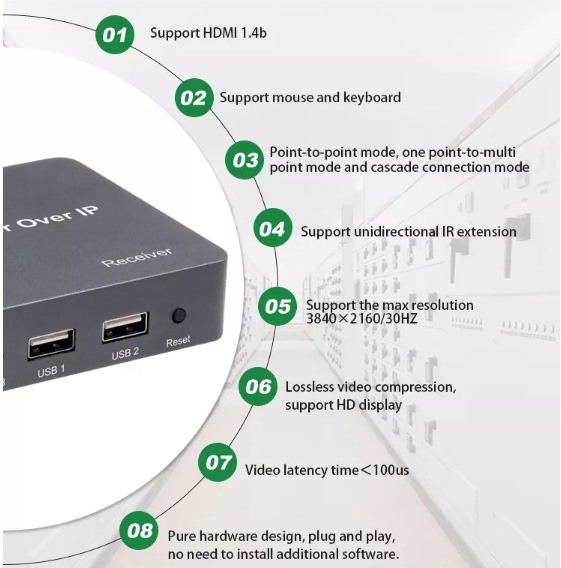

The main features of the 150m HDMI KVM Extender:
Ø Support HDMI 1.4b
Ø Support point-to-point mode, one point-to-multi point mode and cascade connection mode
Ø Support mouse and keyboard
Ø Support unidirectional IR extension
Ø Support the max resolution 3840×2160/30HZ
Ø Lossless video compression, support HD display
Ø Video latency time<100us
Ø Pure hardware design, plug and play, no need to install additional software.
Technical Paramaters:
| Length of CAT-6 cable between Rx and TX | Up to 60 metres |
| HDMI Resolutions |
1080p/1080i/720p/576p/576i/480p/480i
|
| Max bandwidth | 150MHz |
| Max baud rate | 4.5Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| HDMI cable distance |
Input<=10m AWG26 HDMI standard cable output<=15m AWG26 HDMI standard cable |
| Power adapter format | Input:AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A |
|
TX max working current
RX max working current
|
450mA 350mA |
| Operating Temperature range | (-15 to +45 Centigrade) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) |
122x50x19mm
|
| Weight | 108g*2PCS |
Overview

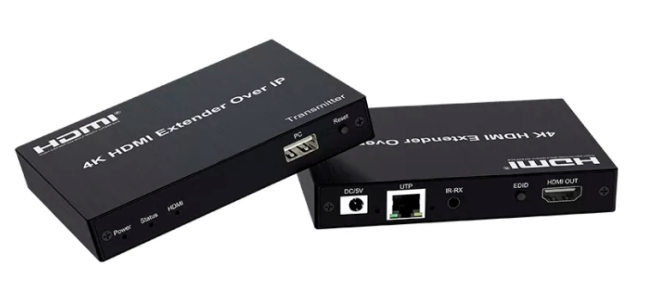

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
