HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out
Price:
negotiation
MOQ:
1 pair
Delivery Time:
5-8 working days
Brand:
AEO
Product Description
HD 20KM KVM HDMI Fiber Converter 4K@60HZ RS232 Loop Out
The main features of the 20km Fiber HDMI KVM Extender:
* Support HDMI 4K@60Hz/HDCP2.2;
* Support transmitter HDMI Loop out;
* Support 3.5mm stereo output;
* Support IR;
* Support KVM;
* Support RS232;
* Comply with SFP MSA and SFF-8472 standard protocol;
* Pure hardware design, plug and play, do not need to install additional software;
* Support 4K to 1080P resolution (Downscaling)
Technical Paramaters
HDMI Version …………………...…...........…….......….......................4K@60Hz / HDCP2.2
HDMI resolution ………...............………The highest input resolution is 3840*2160@60Hz
Audio format ………………..……............................................................................. L-PCM
Fiber wavelength......................................................................................1310nm; 1550nm
Fiber transmission distance.........................................................................................20km
The maximum operating current …............................. 1.5A/5V DC(TX), 1.2A/5V DC (RX)
Operating Temperature range ……………………………....……....…........ (-10℃~ +55℃)
Dimension (L x W x H) ………………………………...…....................…...106x106x17(mm)
Weight ….…..…………………………………………….......................TX:272.1g RX:273.1g
Overview
HDMI fiber extender is a device transmitting HD audio and video signal via bidirectional single fiber cable. It transmits your HD display with the high resolutions up to 20km. It supports IR, RS232 and KVM function.By using bidirectional single fiber LC interface, it has the characteristics of low cost and stable signal transmission.

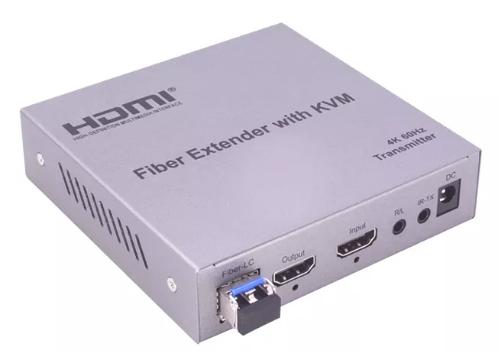

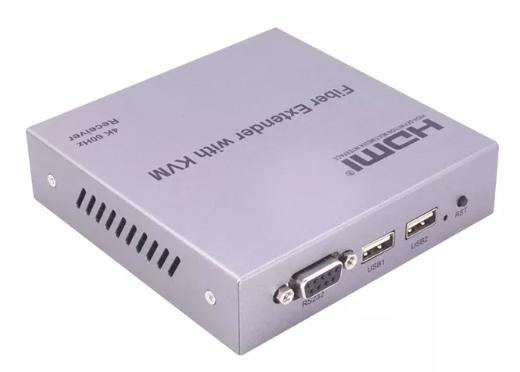

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
