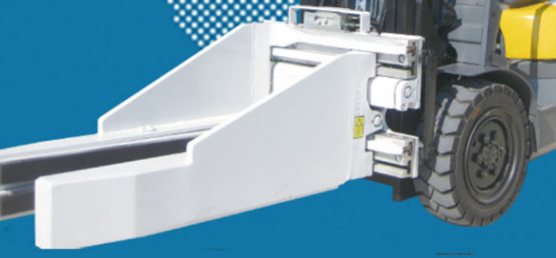

2700kg Forklift Truck Block Clamp Lifter Forklift Truck Attachments
Forklift connector cement cement brick clamp lateral movement type
Functions & Applications
For the transport of stones and bricks produced in different industries around the world, forklift connectors are used. to clamp all kinds of stone and concrete blocks. It is especially suitable for non-pallet transport and concrete blocks and bricks. Operation of stone slabs, stone etc.
Features
* High strength T-shaped staff and leadership nut structure, durable.
* The duration of rotation is long.
Options
* User defined range
* Weapons of various materials
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range O (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness T (mm) |
Overall Height A (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| Sideshifting | ||||||||||||
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-001B | III | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-002B | III | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-003B | III | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-004B | III | 290-1610 | 242 | 1400 | 1016 | 202 | 710 | 220 | 650 | 152 | 250 |
Remark:
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The arm height of 128mm is single glue type, and the arm height of 242mm is double glue type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right arms are independent joints.
Applicable Industries
Hotels, clothing stores, building materials
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
