6000lbs Forklift Side Shifter Attachments 666mm Height

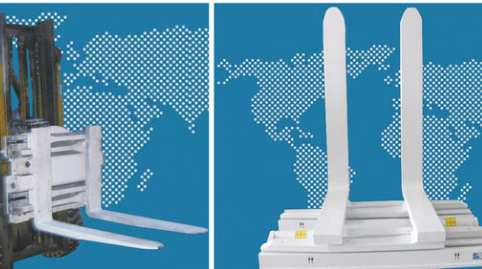

Forklift side shift fork clamp with 1065mm fork
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Fork Length A(mm) |
Frame Width B (mm) |
Overall Height H (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1600@600 | CFS20D-004A | II | 410-1660 | 915 | 940 | 660 | 185 | 295 | 180 | 168 |
| 1600@600 | CFS20D-005A | II | 410-1660 | 1065 | 940 | 660 | 175 | 306 | 180 | 198 |
| 1600@600 | CFS20D-006A | II | 410-1660 | 1220 | 940 | 660 | 170 | 328 | 180 | 231 |
Product Description
CFS20D-004A Fork Length 915mm, Frame Width 940mm, Overall Height 666mm, Vertical Center of Gravity 185mm
CFS20D-005A Fork Length 1065mm, Frame Width 940mm, Overall Height 660mm, Vertical Center of Gravity 175mm
CFS20D-006A Fork Length 1220mm, Frame Width 940mm, Overall Height 660mm, Vertical Center of Gravity 170mm
Options
* Fork size
* Various installation categories are available
* User defined opening range
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The fork clamp can be equipped with a special arm as required.
5. Provide different fork requirements as required.
Other size available on request.
Applicable Industries
Hotels, clothing stores, building materials stores, machinery maintenance stores and manufacturers
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
