Customizable 1800℃ MOSI2 Heating Elements For Industrial Furnaces
Product Description:

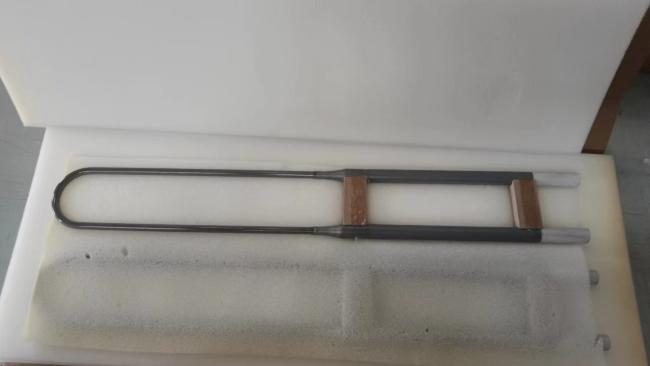

1800°C Industrial high temperature MoSi2 heating elements for electric furnace is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 heater is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.
Products Show:
MoSi2 heating elements size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.Length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500°Cto 1800°C.
4.Shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
How to order ?
Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
Specification:
| Diameter of hot zone | Diameter of cold zone | Length of hot zone | Length of cold zone | Terminal center distance |
| 3mm | 6mm | 80-300mm | 80-500mm | 25mm |
| 4mm | 9mm | 80-350mm | 80-500mm | 25mm |
| 6mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
| 7mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
| 9mm | 18mm | 100-1200mm | 100-2500mm | 40-80mm |
| 12mm | 24mm | 100-1500mm | 100-1500mm | 40-100mm |
Packing & Delivery:
Packaging for cast in heater
1) plastic bag + carton for cast in heater
2) wooden box for cast in heater
Shipping for cast in heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
