High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials
Price:
10USD/PC
MOQ:
1PC
Delivery Time:
5-8 working days
Brand:
ZG
Product Description
Aluminum Nitride Powder
High purity AlN powder for electronic materials is the optimal material choice for sintering AIN substrates. The sintered AIN substrate features ultra-high thermal conductivity, excellent electrical insulation, and thermal expansion properties that closely match semiconductor materials such as silicon wafers. Widely used in the electronic packaging industry, our aluminum nitride powder is produced using the carbon thermal reduction method, ensuring stable process control and access to diverse raw material sources.
Key Advantages
- Exceptional high purity levels
- Narrow particle size distribution
- Versatile applications including substrate casting, granulation powder, and filler powder
- Customizable particle sizes to meet specific scenario requirements
Technical Specifications
| Parameter | H-2 | M-3 |
|---|---|---|
| Specific surface area | ≥2.0 | ≥2.0 |
| Mean particle size | ≤2.0 | ≤2.0 |
| O (wt%) | ≤0.95 | ≤0.95 |
| C (ppm) | ≤0.045 | ≤0.050 |
| Ca (ppm) | ≤200 | ≤200 |
| Si (ppm) | ≤50 | ≤70 |
| Fe (ppm) | ≤30 | ≤50 |

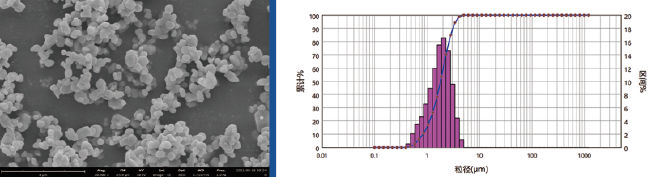

H-2 Grade

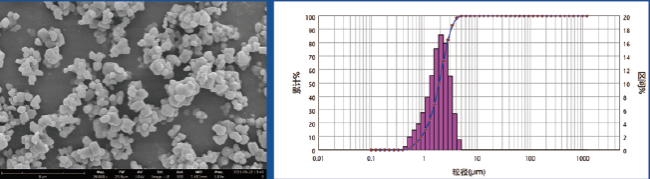

H-3 Grade
