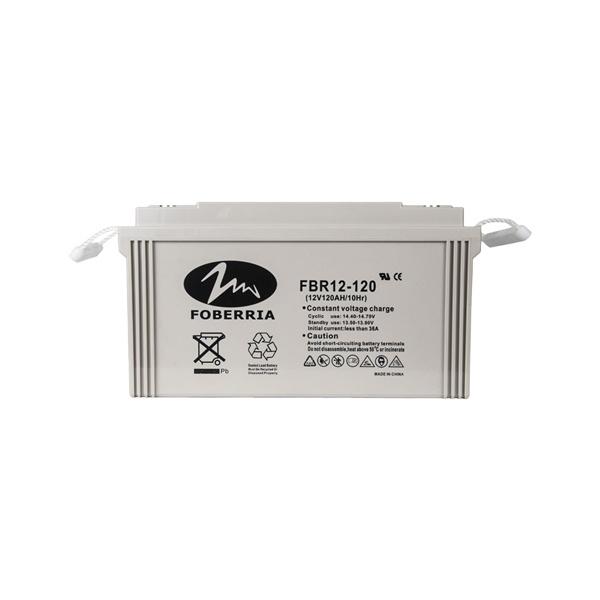

Vrla 12v 120ah Lead Acid Battery
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
25-30days
Brand:
FOBERRIA
Product Description
Sealed Maintenance-free vrla 12v 120ah lead acid battery for wind system
>Main Features
1.Using oxygen recombination technology: maintenance-free;
2.PbCaSn alloy for plate grids: less gassing, less self-discharging;
3.High quality AGM separator: extend cycle life and prevent micro short circuit;
4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5.High purity raw material: ensure low self discharge rate;
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity.
>Specification
| Battery Model No. | FBR12V120Ah | |
| Nominal Voltage | 12V | |
| Capacity | 20HR(5.25V) | 120Ah |
| (25ºC) | 10HR(5.25V) | 105Ah |
| 1HR(4.80V) | 74Ah | |
| Dimension | Length | 281±2mm |
| Width | 267±2mm | |
| Height | 207±2mm | |
| Total height | 210±2mm | |
| Approx. Weight | 37.5kg±4% | |
| Terminal type | F13 | |
| Internal resistance | Approx 4mΩ | |
| (Fully charged,25ºC) | ||
| Capacity affected by | 40ºC | 102% |
| Temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge(25ºC) | 3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage (25ºC) |
13.5 to 13.8V Temperature compensation:-18mV/ºC |
|
| Cyclic charging voltage (25ºC) |
14.5 to 15V Temperature compensation:-30mV/ºC |
|
| Max charging current | 36A | |
| Max discharging current | 960A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
>Structure and composition
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
>Constant Current Discharge Characteristics(A,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 262 | 202 | 121 | 74.2 | 43.8 | 31.2 | 25.2 | 21.5 | 14.8 | 12.2 | 6.47 |
| 9.9V | 254 | 197 | 118 | 73 | 43.6 | 31 | 25.1 | 21.4 | 14.7 | 12.2 | 6.46 |
| 10.2V | 243 | 190 | 115 | 71.2 | 43.2 | 30.8 | 24.9 | 21.3 | 14.6 | 12.2 | 6.44 |
| 10.5V | 233 | 183 | 112 | 69.7 | 42.6 | 30.6 | 24.7 | 21.1 | 14.5 | 12.1 | 6.4 |
| 10.8V | 220 | 173 | 108 | 67.6 | 41.5 | 29.7 | 24 | 20.5 | 14.1 | 12 | 6.36 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 2825 | 2214 | 1353 | 845 | 508 | 367 | 297 | 255 | 176 | 146 | 77.7 |
| 9.90V | 2741 | 2160 | 1326 | 833 | 505 | 365 | 295 | 253 | 175 | 146 | 77.5 |
| 10.2V | 2628 | 2081 | 1285 | 812 | 500 | 362 | 293 | 251 | 174 | 145 | 77.3 |
| 10.5V | 2514 | 2010 | 1254 | 795 | 493 | 360 | 291 | 250 | 172 | 144 | 76.9 |
| 10.8V | 2373 | 1904 | 1208 | 770 | 480 | 349 | 282 | 242 | 167 | 143 | 76.3 |
>Discharge diagram
>Application
1.Solar and wind energy storage system;
2.EPS and UPS battery backup;
3.Signal system , emergency lighting system , security system;
4.Telecommunication Equipment;
5.Power source for portable devices or tools.

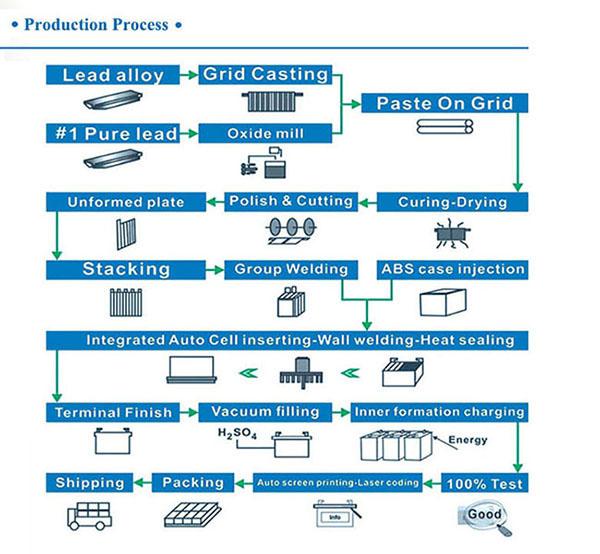

>Production process
