Lead Acid 12v 200ah Solar Battery
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
25-30days
Brand:
FOBERRIA
Product Description
12v 200ah Lead Acid Battery Charging 12v Lead Acid Batter For Solar System
>Main Features
Lead acid battery are the most common form for solar battery storage currently on the market.
Battle-tested, thousands of the world's people have used large of lead-acid batteries with solar electricity to remove their need to be
connected to the traditional electricity grid.
The most common setup of lead acid batteries you'll see is usually some kind of rural household installing a bank of batteries + solar panels,
because it's cheaper than paying $30,000 to get the grid extended all the way to their house.
However, some people who have normal access to the grid still elect to go off-grid with a big bank of lead acid batteries.
>Specification
| Battery Model No. | FBR12V200Ah | |
| Nominal Voltage | 12V | |
| Capacity (25ºC) |
20HR(5.25V) | 200Ah |
| 10HR(5.25V) | 176Ah | |
| 1HR(4.80V) | 124Ah | |
| Dimension | Length | 522±2mm |
| Width | 238±2mm | |
| Height | 218±2mm | |
| Total height | 221±2mm | |
| Approx. Weight | 59.5kg±4% | |
| Terminal type | F13 | |
| Internal resistance (Fully charged,25ºC) |
Approx 3.5mΩ | |
| Capacity affected by temperature(20HR) |
40ºC | 102% |
| 25ºC | 100% | |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge (25ºC) |
3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating temperature range |
Discharge | -15ºC-50ºC(5ºF-122ºF) |
| Charge | -10ºC-50ºC(14ºF-122ºF) | |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage (25ºC) |
13.5 to 13.8V Temperature compensation:-18mV/ºC |
|
| Cyclic charging voltage (25ºC) |
14.5 to 15V Temperature compensation:-30mV/ºC |
|
| Max charging current | 60A | |
| Max discharging current | 1600A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
>Structure and composition
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |

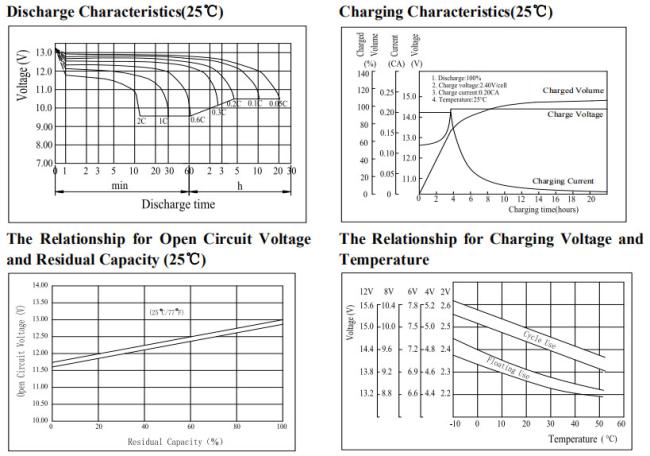

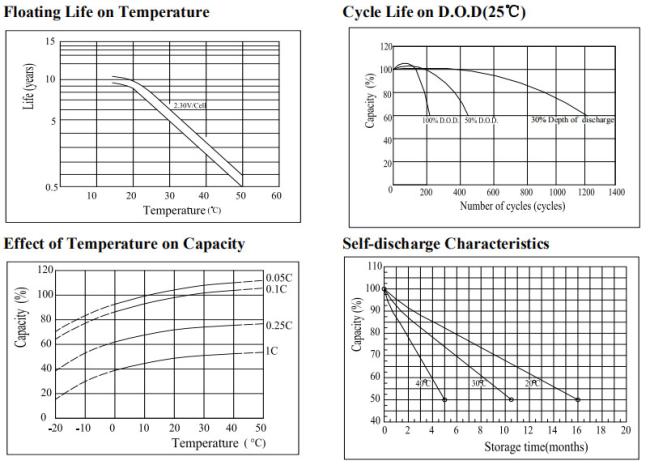

>Discharge diagram
>Application
1.Solar and wind energy storage system;
2.EPS and UPS battery backup;
3.Signal system , emergency lighting system , security system;
4.Telecommunication Equipment;
5.Power source for portable devices or tools.
>Constant Current Discharge Characteristics(A,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 436 | 336 | 201 | 124 | 73.1 | 52.0 | 42.0 | 35.9 | 24.7 | 20.4 | 10.8 |
| 9.9V | 423 | 328 | 197 | 122 | 72.6 | 51.7 | 41.8 | 35.7 | 24.5 | 20.3 | 10.8 |
| 10.2V | 405 | 316 | 191 | 119 | 72.0 | 51.4 | 41.5 | 35.4 | 24.4 | 20.3 | 10.7 |
| 10.5V | 388 | 305 | 186 | 116 | 70.9 | 51.0 | 41.2 | 35.2 | 24.2 | 20.1 | 10.7 |
| 10.8V | 366 | 289 | 179 | 113 | 69.1 | 49.5 | 41.0 | 34.1 | 23.5 | 20.0 | 10.6 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 4709 | 3689 | 2255 | 1409 | 846 | 612 | 494 | 424 | 293 | 243 | 129 |
| 9.90V | 4568 | 3601 | 2210 | 1388 | 841 | 608 | 491 | 422 | 292 | 243 | 129 |
| 10.2V | 4379 | 2468 | 2142 | 1353 | 834 | 604 | 488 | 419 | 290 | 242 | 129 |
| 10.5V | 4191 | 3350 | 2091 | 1324 | 821 | 600 | 485 | 416 | 287 | 240 | 128 |
| 10.8V | 3955 | 3173 | 2014 | 1284 | 800 | 582 | 470 | 404 | 279 | 239 | 127 |

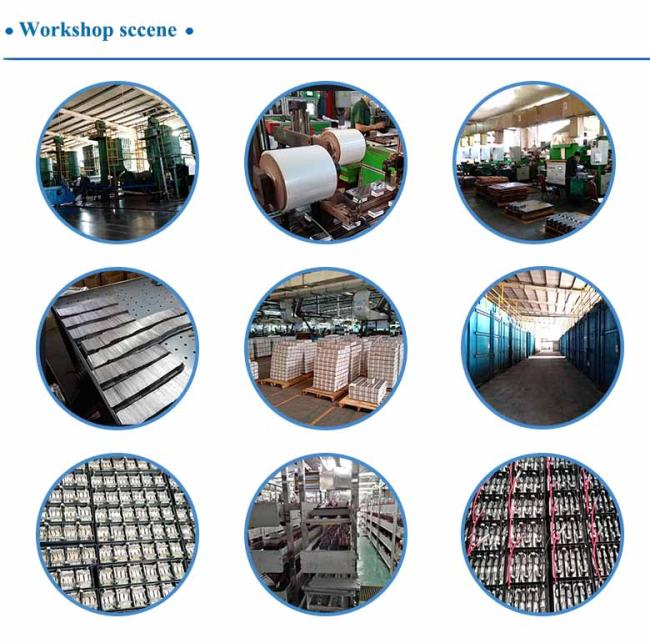

>Workshop scene
>FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2. Do you have any MOQ limit?
Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the different model numbers.
50-500pcs sample order is available for sample checking is available.
Q3. Is it OK to print my logo on the product?
Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: How to solve the technical problem?
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5:. What certificate your company have?
Q5:. What certificate your company have?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
Q6.What is your warranty time for VRLA battery ?
Q6.What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery usage.
Please kindly contact us for accurate information based on detailed requirements.
Q7. Why battery has different capacity at different hour rate?
Q7. Why battery has different capacity at different hour rate?
A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.
For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A.
With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower
discharge current than the 2-hr rate.
Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.
