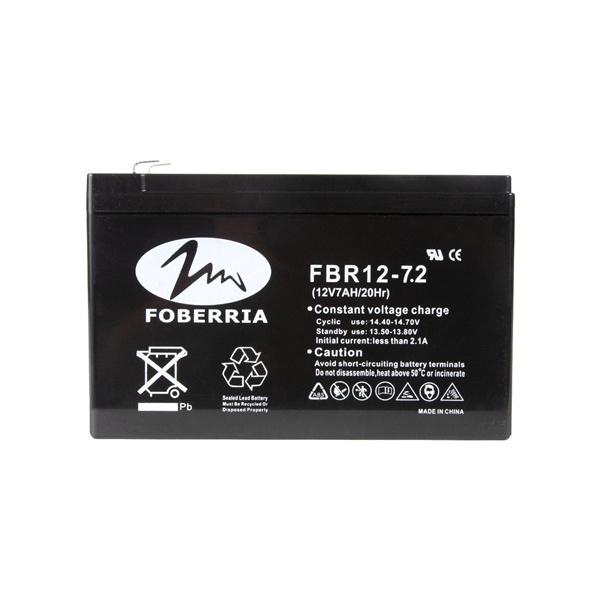

Deep Cycle Gel Lead Acid Solar Battery 12v 7ah 105A
12v 7ah 105A Deep Cycle Gel Battery Lead Acid Solar Battery
1. Competitive price -We have direct factory with complete production line to meet your requirements.
2. Rich experience & professional -Leading UPS & Solar battery manufacturer over 13 years with 26400 Square meters.
3. Low MOQ- 1PC for sample checking us available
4. Strict quality control system -100% pass extremely high strict quality test & gained good reputation as well as trust from our clients.
| FEATURES: |
| Sealed and maintenance free operation |
| Non-Spillable construction design |
| Safety valve installation for explosion proof |
| High quality and high reliability |
| Exceptional deep discharge recovery performance |
| Low self discharge characteristic |
| Flexibility design for multiple install positions |
| The opeNPting ambient tempeNPture -40 °C to +65 °C |
| Battery Model No. | FBR12-7(12V7Ah) | |
| Nominal Voltage | 12V | |
| Capacity(25ºC) | 20HR(10.5V) | 7.0.Ah |
| 10HR(10.5V) | 6.5Ah | |
| 1HR(9.60V) | 4.5Ah | |
| Dimension | Length | 151±1.5mm |
| Width | 65±1mm | |
| Height | 94±1mm | |
| Total height | 100±1mm | |
| Approx. Weight | 2.08kg±5% | |
| Terminal type | F1/F2 | |
| Internal resistance(Fully charged,25ºC) | 30mΩ | |
| Capacity affected by | 40ºC | 102% |
| temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge(25ºC) | 3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage(25ºC) | 13.6 to 13.8V | |
| Temperature compensation:-18mV/ºC | ||
| Cyclic charging voltage(25ºC) | 14.5 to 15V | |
| Temperature compensation:-30mV/ºC | ||
| Max charging current | 2.1A | |
| Max discharging current | 105A(5sec.) | |
| Designed floating life(20ºC) | 5years | |
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);
2. Wind Power System;
3. UPS and computer backup power;
4. telecommunication system;
5. Power station System;
6. Railway System;
7. Emergency lighting system;
8. Automatic control system;
9. Alarm system for fire protection, security.
| F.V/Time | 5min | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 10h | 20h |
| 9.6V | 26.7 | 16.9 | 13.2 | 7.46 | 4.59 | 2.51 | 1.74 | 1.44 | 1.22 | 0.66 | 0.36 |
| 9.9V | 25.9 | 16.4 | 12.9 | 7.31 | 4.52 | 2.49 | 1.72 | 1.43 | 1.21 | 0.66 | 0.35 |
| 10.2V | 24.9 | 15.8 | 12.4 | 7.08 | 4.4 | 2.47 | 1.71 | 1.42 | 1.21 | 0.66 | 0.35 |
| 10.5V | 23.8 | 15.1 | 12 | 6.91 | 4.31 | 2.43 | 1.7 | 1.41 | 1.2 | 0.65 | 0.35 |
| 10.8V | 22.5 | 14.2 | 11.4 | 6.66 | 4.18 | 2.37 | 1.65 | 1.36 | 1.16 | 0.64 | 0.34 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 5min | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 10h | 20h |
| 9.60V | 298 | 191 | 151 | 85.4 | 53.1 | 29.3 | 20.6 | 17.1 | 14.6 | 7.95 | 4.26 |
| 9.90V | 289 | 185 | 147 | 83.7 | 52.3 | 29.2 | 20.5 | 17 | 14.5 | 7.92 | 4.25 |
| 10.2V | 278 | 178 | 142 | 81.2 | 51 | 28.9 | 20.3 | 16.9 | 14.4 | 7.88 | 4.23 |
| 10.5V | 266 | 170 | 137 | 79.2 | 50 | 28.5 | 20.2 | 16.8 | 14.3 | 7.84 | 4.2 |
| 10.8V | 251 | 161 | 130 | 76.3 | 48.4 | 27.8 | 19.6 | 16.3 | 13.9 | 7.68 | 4.12 |
