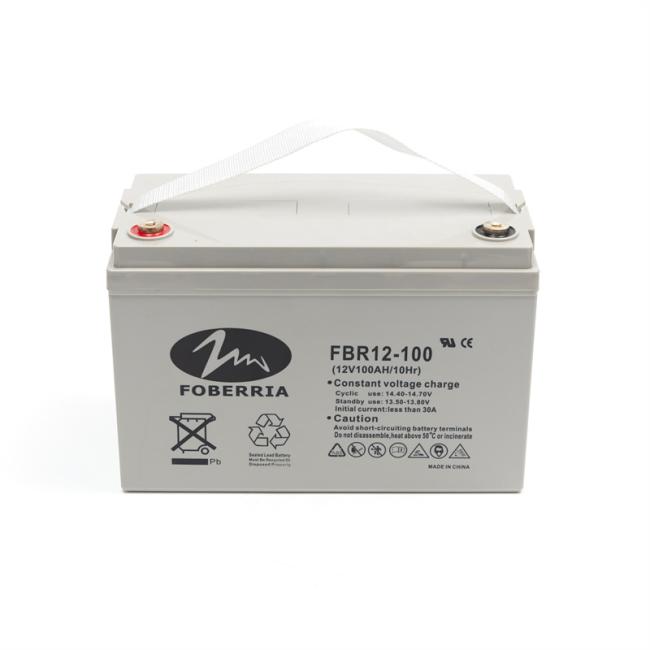

12v 100ah Lead Acid Battery Grey Deep Cycle For Solar System
12v 100ah lead acid battery Grey Deep Cycle AGM Battery Solar Battery
> Main Features
1. Good discharge performance
2. Low self-discharge rate:≤3%/month
3. High sealed reaction efficiency≥99％
4. Wide operation temperature:﹣20℃~60℃
5. Tight assembly,low internal resistance
6. Wiring terminals: 2 or more types of wiring terminals, multiple choices
7. Diaphragm: improved AGM diaphragm makes the resistance lower, high assembly pressure increases the service life of deep circulation
8. Shell: high strength ABS (ul94-hb); Ul94-vo optional
9. Terminal sealing: (mechanical + epoxy resin glue) double sealing
>Product description
1. Cover:
Made of ABS plastic;
2. Negative plates:
3. Separator:
High quality AGM separator.
4. Postive plates:
Pbca grids minimize corrosion and prolong life.

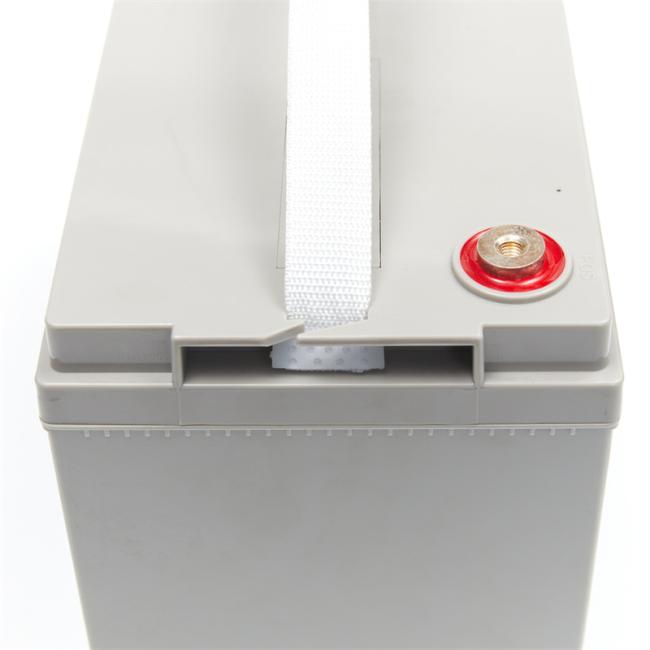

5. Terminal post:
Copper material with maximum conductivity,enchance the high current rapidly.
6. Vent valve:
Allows the release of excess gas automatically for safet
Products are widely used in hybrid wind off-grid power station, household energy storage power generation system, monitoring system,equipment, street lamp, outdoors, electric cars, electric sightseeing cars, street cleaner, sanitation trucks, the uninterrupted power source(UPS), communication base station, and emergency EPS system, etc.
| Battery Model No. | FBR12-100 | |
| Nominal Voltage | 12V | |
| Capacity | 20HR(10.5V) | 100Ah |
| (25ºC) | 10HR(10.5V) | 76Ah |
| 1HR(9.6V) | 60.9Ah | |
| Dimension | Length | 330±2mm |
| Width | 171±2mm | |
| Height | 214±2mm | |
| Total height | 220±2mm | |
| Approx. Weight | 29.5kg±4% | |
| Terminal type | F14 | |
| Internal resistance(Fully charged,25ºC) | Approx 4.5mΩ | |
| Capacity affected by | 40ºC | 102% |
| Temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge(25ºC) | 3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage (25ºC) |
13.5 to 13.8V Temperature compensation:-18mV/ºC |
|
| Cyclic charging voltage (25ºC) |
14.5 to 15V Temperature compensation:-30mV/ºC |
|
| Max charging current | 30A | |
| Max discharging current | 800A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 262 | 202 | 121 | 74.2 | 43.8 | 31.2 | 25.2 | 21.5 | 14.8 | 12.2 | 6.47 |
| 9.9V | 254 | 197 | 118 | 73 | 43.6 | 31 | 25.1 | 21.4 | 14.7 | 12.2 | 6.46 |
| 10.2V | 243 | 190 | 115 | 71.2 | 43.2 | 30.8 | 24.9 | 21.3 | 14.6 | 12.2 | 6.44 |
| 10.5V | 233 | 183 | 112 | 69.7 | 42.6 | 30.6 | 24.7 | 21.1 | 14.5 | 12.1 | 6.4 |
| 10.8V | 220 | 173 | 108 | 67.6 | 41.5 | 29.7 | 24 | 20.5 | 14.1 | 12 | 6.36 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 2825 | 2214 | 1353 | 845 | 508 | 367 | 297 | 255 | 176 | 146 | 77.7 |
| 9.90V | 2741 | 2160 | 1326 | 833 | 505 | 365 | 295 | 253 | 175 | 146 | 77.5 |
| 10.2V | 2628 | 2081 | 1285 | 812 | 500 | 362 | 293 | 251 | 174 | 145 | 77.3 |
| 10.5V | 2514 | 2010 | 1254 | 795 | 493 | 360 | 291 | 250 | 172 | 144 | 76.9 |
| 10.8V | 2373 | 1904 | 1208 | 770 | 480 | 349 | 282 | 242 | 167 | 143 | 76.3 |
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the different model numbers.
Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5:. What certificate your company have?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
Q6. What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.
Q7. Why battery has different capacity at different hour rate?
A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.
Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.
