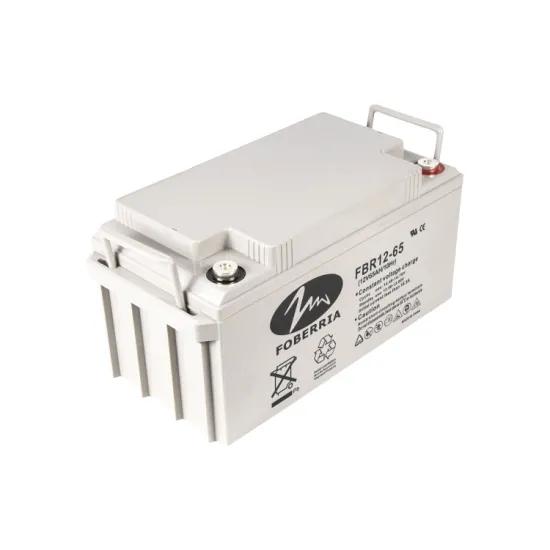

12v 65ah Sealed Emergency UPS Rechargeable Battery Grey
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
25-30days
Brand:
FOBERRIA
Product Description
UPS battery 12v Battery 65ah Sealed Emergency Battery UPS Solar Rechargeable Battery
> Specification
| Battery Model No. | FBR12-65 | |
| Nominal Voltage | 12V | |
| Capacity | 20HR(10.5V) | 65Ah |
| (25ºC) | 10HR(10.5V) | 57Ah |
| 1HR(9.6V) | 40Ah | |
| Dimension | Length | 350±2mm |
| Width | 167±2mm | |
| Height | 175±2mm | |
| Total height | 175±2mm | |
| Approx. Weight | 20kg±4% | |
| Terminal type | F14 | |
| Internal resistance(Fully charged,25ºC) | Approx 6mΩ | |
| Capacity affected by | 40ºC | 102% |
| Temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% | |
| -15ºC | 65% | |
| Self-discharge(25ºC) | 3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% | |
| 12month | Remaining Capacity:65% | |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) | |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) | |
| Float charging voltage (25ºC) |
13.5 to 13.8V Temperature compensation:-18mV/ºC |
|
| Cyclic charging voltage (25ºC) |
14.5 to 15V Temperature compensation:-30mV/ºC |
|
| Max charging current | 19.5A | |
| Max discharging current | 650A(5sec.) | |
| Designed floating life(20ºC) | 10years | |
>Structure and composition
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
>Constant Current Discharge Characteristics(A,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 262 | 202 | 121 | 74.2 | 43.8 | 31.2 | 25.2 | 21.5 | 14.8 | 12.2 | 6.47 |
| 9.9V | 254 | 197 | 118 | 73 | 43.6 | 31 | 25.1 | 21.4 | 14.7 | 12.2 | 6.46 |
| 10.2V | 243 | 190 | 115 | 71.2 | 43.2 | 30.8 | 24.9 | 21.3 | 14.6 | 12.2 | 6.44 |
| 10.5V | 233 | 183 | 112 | 69.7 | 42.6 | 30.6 | 24.7 | 21.1 | 14.5 | 12.1 | 6.4 |
| 10.8V | 220 | 173 | 108 | 67.6 | 41.5 | 29.7 | 24 | 20.5 | 14.1 | 12 | 6.36 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 2825 | 2214 | 1353 | 845 | 508 | 367 | 297 | 255 | 176 | 146 | 77.7 |
| 9.90V | 2741 | 2160 | 1326 | 833 | 505 | 365 | 295 | 253 | 175 | 146 | 77.5 |
| 10.2V | 2628 | 2081 | 1285 | 812 | 500 | 362 | 293 | 251 | 174 | 145 | 77.3 |
| 10.5V | 2514 | 2010 | 1254 | 795 | 493 | 360 | 291 | 250 | 172 | 144 | 76.9 |
| 10.8V | 2373 | 1904 | 1208 | 770 | 480 | 349 | 282 | 242 | 167 | 143 | 76.3 |
>Discharge diagram
>Production process
>Product Characteristic
Our FBR UPS series is the general purpose battery with 10 years design life for float service.
With up-dated AGM valve regulated technology and high purity raw materials, the FBR UPS series battery has reliable standby service life.
It is suitable for UPS/EPS/inverter,emergecylight and security systems applications.
>Application
Control systems, electric toys, emergency lamp, power tools, medical treatment equipment,
alarm system, emergency light system, standby power supply, UPS and computer standby power supply,
power system, telecommunication system, firefighting equipment standby power supply, railway station,
ship equipment, telephone swiching system.

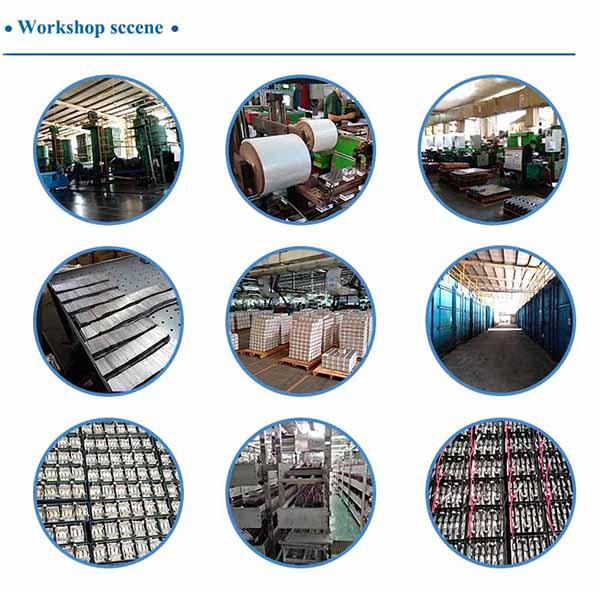

>Workshop scene
>FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the different model numbers.
50-500pcs sample order is available. for sample checking is available.
Q3. Is it OK to print my logo on the product?
Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5:. What certificate your company have?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
Q6. What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.
Q7. Why battery has different capacity at different hour rate?
A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.
For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A.
With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.
Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.
