Unreeling Dia 3inches Toilet Paper Production Line Wall Type Rewinding
Price:
65,000-110,000USD
MOQ:
1
Delivery Time:
70-80 days
Brand:
Xinyun
Product Description

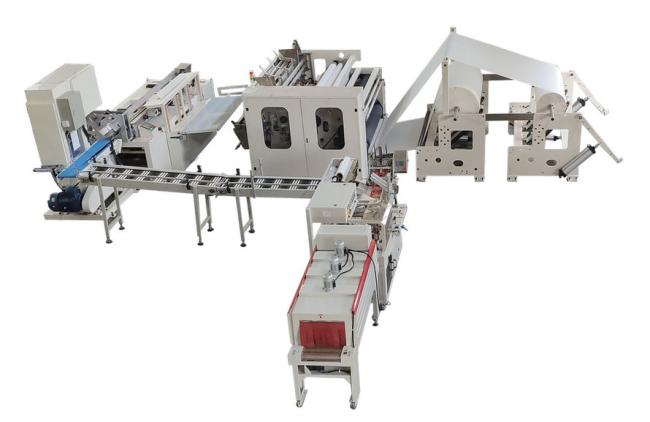

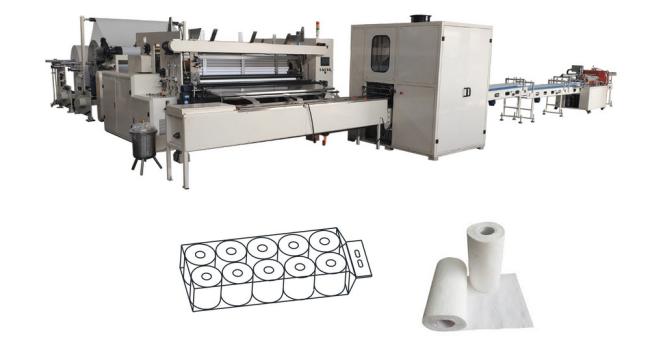

XY-TQ-A-D High Speed Toilet Tissue Paper And Kitchen Towel Paper Machine Production Line

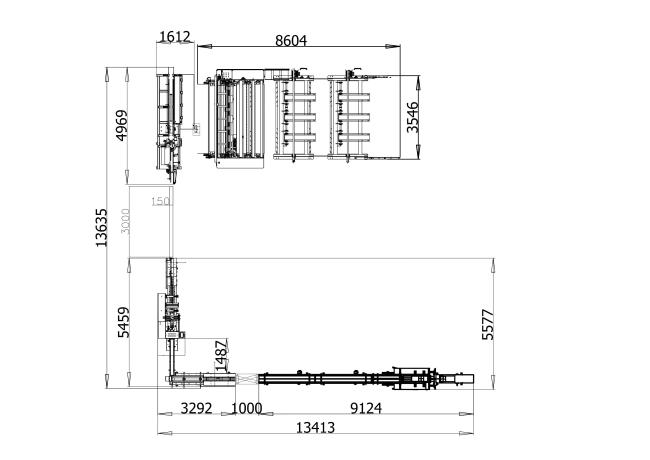

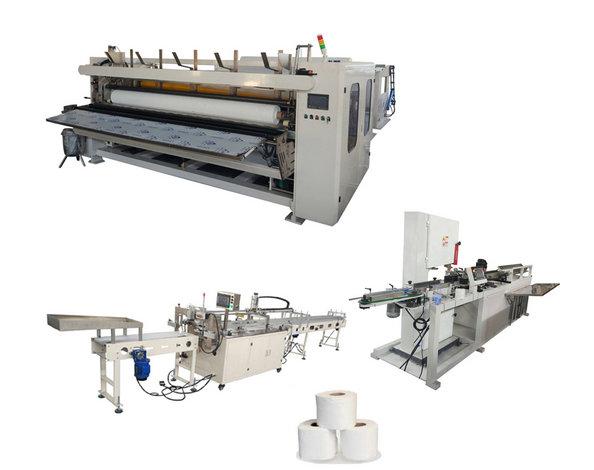

This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
| Model | XY-TQ-B Automatic rewinding toilet roll paper making machine |
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Program Controller | PLC( INVT) |
| Unwind Stands | 2 Stands(Need to be specified) |
| Production Speed | 0~230m/min |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |
| Full Embossment | Steel to rubber. |
Video Link:https://youtu.be/op5LTOLr5z0

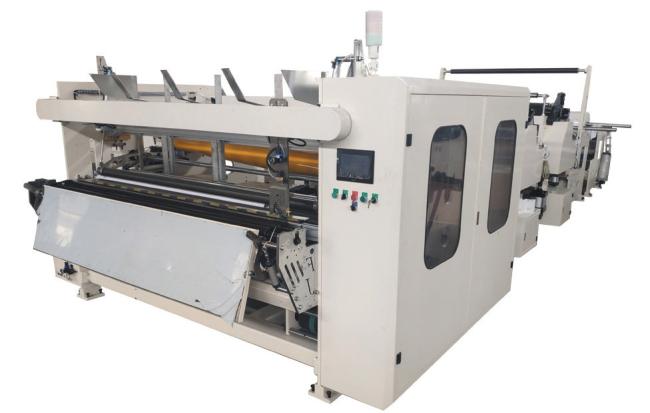

XY-TQ-B Full Automatic Toilet Paper Rewinding Machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core.
Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log.
Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link: https://youtu.be/yy_CHnOqlqs
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns.
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

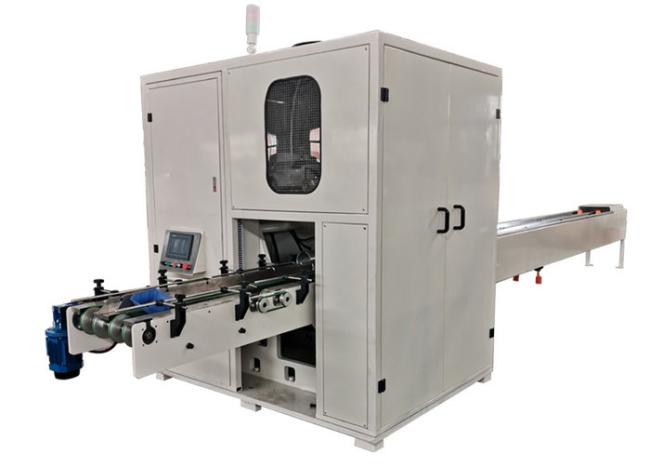

XY-AI-280 Full Automatic Double Channel Log Saw
Functions and Features:
XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Video Link:https://youtu.be/UkiJQz-DLgE
|
Model
|
XY-AI-280 Log Saw Machine(Double Channel)
|
|
Jumbo Roll Width
|
2200~2800mm (Other size can be specified)
|
|
Jumbo Roll Diameter
|
Φ100~φ120mm(Other size can be specified)
|
|
Design Speed
|
120Cuts/min
|
|
Stable Speed
|
100Cuts/min
|
|
Grinding System
|
Pneumatic Sharpen, grinding time can be set
|
|
Driving System
|
Delta/Mitsubishi Servo Motor
|
|
Power
|
11KW
|
|
Overall Dimension
|
6500*2500*2000mm (Other size depends on model and configuration)
|
|
Blade Diameter
|
610*68.3*3.8
|
|
Voltage
|
380V 50HZ
|
|
Weight
|
About 4T
|

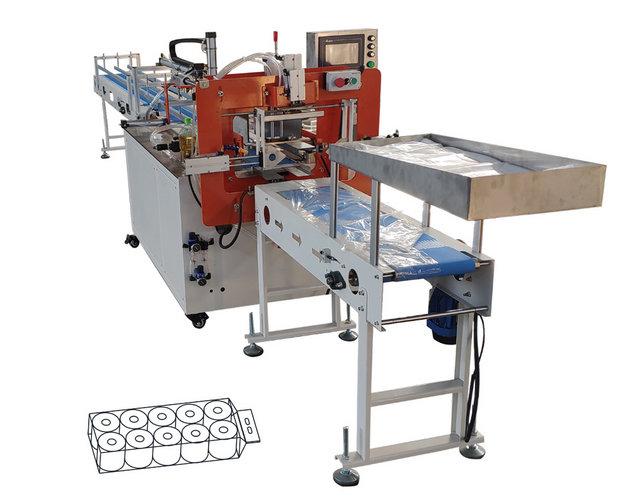

XY-AI-398A Semi Automatic Multiple Rolls Packing Machine
Functions and Features:
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements.
It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Video Link:https://youtu.be/BYVkqMQRLmg
|
Speed
|
8-10 bags/min
|
|
Power
|
7.5 Kw(220V 50Hz single phase)
|
|
Air supply
|
0.4-0.5 MPA(supplied by client)
|
|
Roll size
|
Customized design according to your request
|
|
Packing way
|
Pack 4,6,8,10 rolls in a bag
|
|
Dimension
|
4550×1050×1750 mm
|
