MA-(0.8-2mm)x1300mm HR CR GI PPGI Q195 Q235 Q345 slitting production line
1. Product name
MA-(0.8-2mm)x1300mm HR CR GI PPGI Q195 Q235 Q345 slitting production line
2. General Introduction:
MA-(0.8-2mm)x1300mm HR CR GI PPGI Q195 Q235 Q345 slitting production line is widely used in the industries for transformers, motor industries and other metal strips . MZAS company can supply high quality reliable service for steel coil slitting line for the clients all over the world.
3. Detailed technical data for MA-(0.3-2)×600mm High Speed High Precision Slitting Line :
| NO. | Item | Parameters |
| 1 | Applicable material | HR CR GI PPGI Q195 Q235 Q345 |
| 2 | Thickness of material | 0.8-2mm |
| 3 | Material width | 500～1300mm |
| 4 | Inner diameter of steel coil | Ф470--Ф520mm |
| 5 | Outer diameter of steel coil | Max. Φ1800mm |
| 6 | Weight | Max. 20T |
| 7 | Thickness of finished product | 0.8-2mm |
| 8 | Inner diameter of finished coil | Φ508 mm |
| 9 | Outer diameter of finished coil | ≤φ2000 mm |
| 10 | Min. slitting width | 30mm |
| 11 | Slitting speed | 0 ~ 100m/min adjustable. |
| 12 | Cutter knife diameter | D320× D180 ×T10mm |

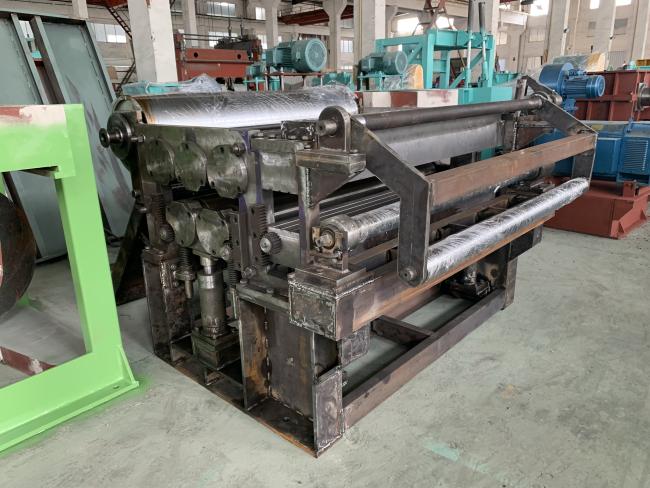

4.processing workshop Photo for reference:
5. Machine main components:
Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control
