MA(0.4-2.0)X1300mm CNC cold roll slitting line with design service life of equipment more than 20years
1. Product name
MA(0.4-2.0)X1300mm CNC cold roll slitting line with design service life of equipment more than 20years
2. Description
The metal deck roll forming machine uses new station to increase the strength of the machine. It commonly applies to be used in floor flat. The friction between the steel and concrete can be increased after making dots of the sheet, so that the floor of the fastness is also increased.
3. Machine parameter:
| 1 | Through belt | ～10m/min(Adjustable); |
| 2 | Cut linear speed | 0～150m/min(Adjustable); |
| 3 | Slitting type | Drive cut |
| 4 | Recoiler mod | Roll up type |
| 5 | Operating elevation | 1000mm |
| 6 | The line area Covered | 20MX10M( according as real) |
| 7 | Running direction | The operator faces the unit on the operation side and runs from left to right. |
4. Use and process:
This equipment is a special shearing equipment that processes the wide-band steel coil into the steel plate narrow-band steel coil required by customers through uncoiling, longitudinal shearing and coiling. It is mainly composed of uncoiling, clamping and straightening, slitting, tension machine, coiler, etc., supplemented by feeding, side guide, transition, transportation, etc.

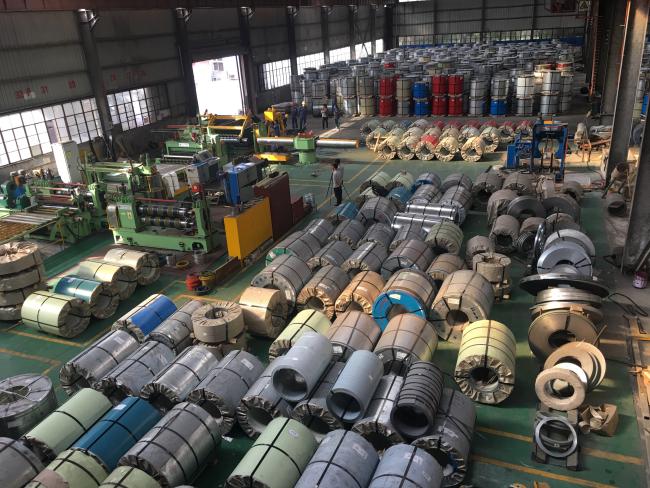

5. Photo for reference:
