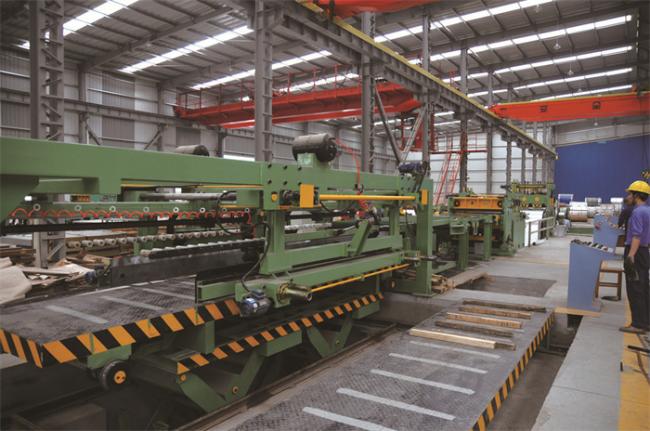

380V 50Hz 2.0-8.0mm Precision Metal Cut To Length Line
1.Description of goods:
380V 50Hz 2.0-8.0mm Precision Metal Cut To Length Line for Steel Coil rotary shear cut to length line
2.Advantages & Characteristics for this coil CTL line:
High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
3. Technical parameter for MA- (2-8)×1250mm/ 1500mm/2000mm Cut to Length Line:
Input material: CR, HR carbon steel coils, GI, PPGI steel plates.
Strip thickness: 2~8mm
Strip width of coil CTL line: 300~1250mm/1500mm/2000mm
Leveling roller: Φ180mm
Material of leveling roller: 40Cr, HRC56-58
Power for leveling: 90KW/110KW DC motor + Eurotherm 590 DC speed control.
Cutting speed: (0~30) m/min, adjustable
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
