1. Description of goods:

MA-(3-12)×1800mm Thick Sheet Slitting Line with stably speed and controled by PLC

2. Introduction:

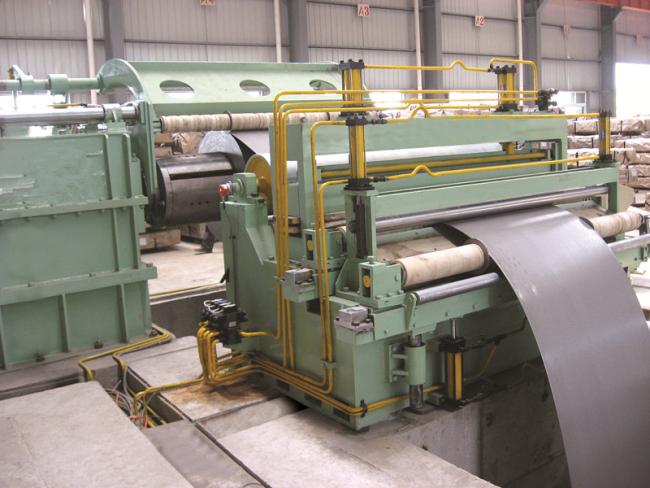

This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.

3. Detail specification of Coil Slitting Machine:
MA-(4-16)×2200mm Sheet Slitting Line
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Strip thickness: (4~16) mm
Metal Coil Slitter Strip width: 800~2200mm
Coil Slitting Machine Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ230
Diameter of slitter shaft: Φ360
Metal Coil Slitter Disc cutters: 6CrW2Si, HRC54°~56°, OD600mm x ID360mm x T50mm.
Diameter of recoiler block: Φ760mm
Coil Slitting Machine Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 200KW, 250KW.
Slitting speed: (0~30) m/min, adjustable

4. Specifications of Metal Coil Slitter:
