2000mm Metal Strip Slitting Machine

Price Negotiable
Price: USD
MOQ: 1set
Delivery Time: 90-120 working days
Brand: MAZS
Product Description

1. Products name

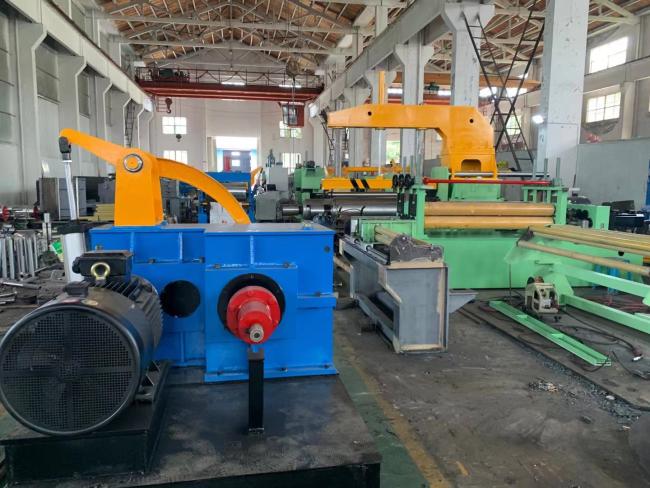

Middle thick Steel Coil Slitting Line-automatic slitting operate of equipment with heavy hydraulic decoiler



2. Introduction:
Capacity of steel strip slitting line is mainly used to slit steel strips of thickness 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm. And for steel coils with width: 600~1600 mm, 800~1800mm or 800~2000mm into narrower baby coils. This steel slitter is widely used for proving steel strip coils for cold rolling mill, welded pipe mill, roll forming machine, etc.



3. Detail information of Steel Slitter:

Model Thickness   Coil Weight Finished slit Max Slitting speed
MA-5 x 1500 0.6-5mm 500-1500mm Max 30T Min. 40mm 80m/min
MA-6 x 1600 1-6mm 600-1600mm Max 30T Min. 50mm 70m/min
MA-8 x 1800 2-8mm 600-1800mm Max 35T Min 50mm 80m/min
MA-10 x 2000 3-10mm 800-2000mm Max 35T Min 60mm 60m/min
Note: The data in the form just as reference according to general ranges, we always design and make each steel slitting machine according to each customer’s specific requirements, so each customer can buy his own well-content line from us.



4. Our service

Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.

Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.





5. Main features

1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
