578-93-3-103 3B12-325 Goodyear Air Spring Firestone W01-358-8048 4.5 Min Height
Industrial Air Springs 578-93-3-103 3B12-325 Goodyear Triple Convoluted Firestone W01-358-8048 4.5 Min. Height
Item Details
|
Goodyear Part number |
3B12-325; 3B12 325; 3B12325 |
|
Goodyear Bellow Number |
578933103; 578-93-3-103; 578 93 3 103 |
| Upper Plate | ASA-92-8-363; ASA 92 8 363; ASA928363 |
| Bottom Plate | ASA-92-6-106; ASA 92 6 106; ASA926106 |
|
Convolutions |
Triple |
|
Type |
Air Spring Assembly |
Other Reference
FIRESTONE
8048
W013588048
W01 358 8048
W01-358-8048
WO13588048
WO1 358 8048
WO1-358-8048
3B12-325 Goodyear air spring technical parameter
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 3
Top Hole/Stud: 3/8-16UNC
Top Plate Dia: 10.3
Top Plate C to C Diameter: 6.2
Bottom Plate Hole Stud Qyt: 2
Bottom Hole/Stud: 3/8-16UNC
Bottom Plate Dia: 10.3
Bottom Plate C to C Diameter: 6.2
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 4.5
Max Height: 19
Air Fitting: 1/4, Offset
Bumper: Without
Girdle hoop: 2 pieces
CONSTANT PRESSURE CHARACTERISTICS
|
AssemblyHeight (in) |
Volume @100PSIG (in) |
Nominal Force (lb) |
||||
|
@20 PSIG
|
40 PSIG
|
@60 PSIG
|
@80 PSIG
|
@100PSIG
|
||
|
19.0 |
1598 |
300 |
800 |
1500 |
2200 |
2900 |
|
18.0 |
1550 |
550 |
1300 |
2100 |
3000 |
4000 |
|
17.0 |
1504 |
800 |
1700 |
2700 |
3700 |
4800 |
|
16.0 |
1440 |
950 |
2000 |
3200 |
4400 |
5600 |
|
15.0 |
1373 |
1100 |
2300 |
3600 |
4900 |
6300 |
|
13.0 |
1235 |
1400 |
2800 |
4300 |
5800 |
7400 |
|
11.0 |
1085 |
1550 |
3200 |
4900 |
6600 |
8400 |
|
9.0 |
892 |
1850 |
3700 |
5600 |
7600 |
9600 |
|
7.0 |
681 |
2050 |
4100 |
6300 |
8400 |
10600 |
|
6.0 |
560 |
2100 |
4250 |
6500 |
8700 |
10900 |
|
4.5 |
429 |
2200 |
4500 |
6800 |
9200 |
11600 |

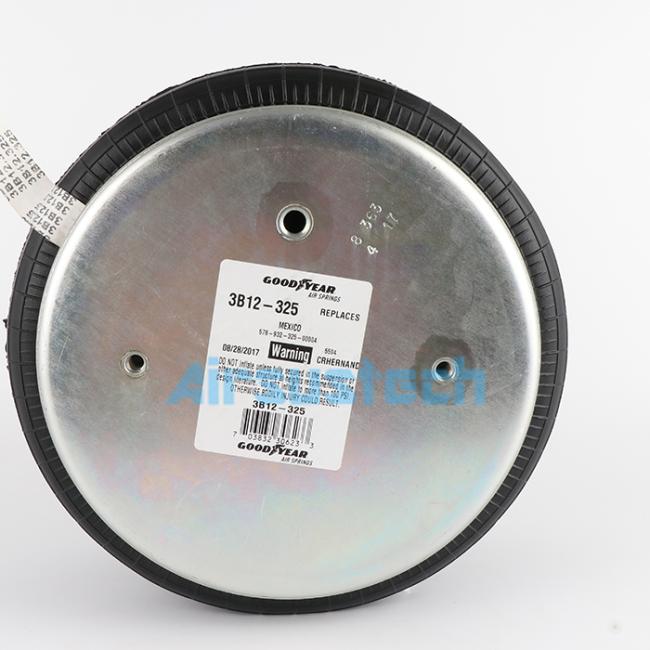

The related picture of 3B12-325 goodyear helper bag/air springs
