W01-358-0213 Double Convolutions Firestone Air Bags For Heavy Duty Construction Equipment
Product Description:
| Description | Assembly Order No. | |
| Style 21 | Blind nuts, 1/4 BSP | W01-M58-6114 |
| Blind nuts, 1/4 BSP, bumper | W01-M58-6115 | |
| Two Ply Bellows | Blind nuts, 3/4 BSP | W01-M58-6112 |
| Blind nuts, 3/4 BSP, bumper | W01-M58-6113 | |
| Countersunk steel bead rings40 mm bolts, nuts, washers | W01-M58-7525 | |

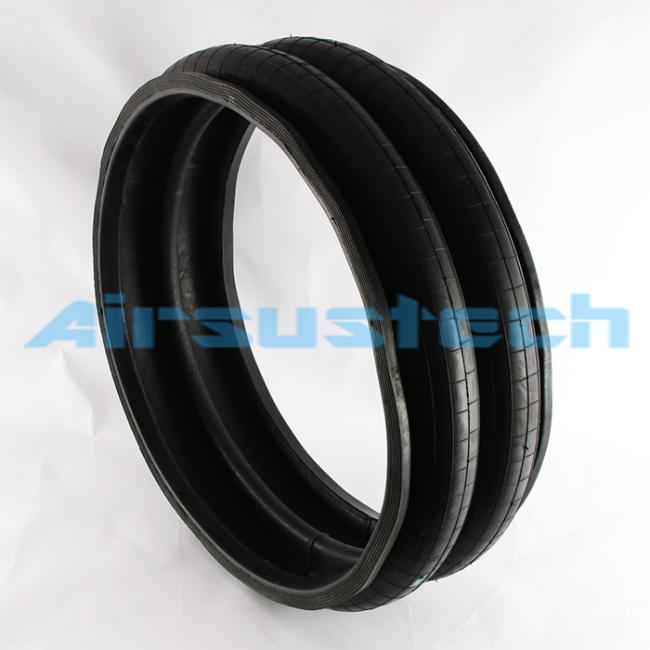

| Rubber bellows only | W01-358-0213 |
Features:
Chapter 384 provides the maximum diameter information at 7 bar (mm).
Additionally, the maximum height (mm) is 77 and the maximum stroke (mm) is 174.
Chapter 257 gives the minimum usable height (mm).
The force at 5 bar (kN) for a 25 mm stroke is 41.5, for 50% of maximum stroke is 36.7, and for maximum stroke is 22.9.
The high strength style number is 205 and the extended height (similar termination) style number is 21-2 according to the style cross reference.
The material used is a 2-ply standard cable and the end cap details include a pearl plate type with a value of 2 for Dim. A (center of blind nut) (mm) which is 159.
An air bearing isolator is used with a building height (mm) specified in Chapter 241. Furthermore, the load (at construction height) has been recorded for 3 bar (kN) at 14.7, 5 bar (kN) at 35.2, and 7 bar (kN) at 36.9.
The natural frequency (at 5 bar) (fn(Hz) is 1.8 and the isolation percentage at forced frequency 7 Hz is 92.8, at 13 Hz is 98.3, and at 25 Hz is 99.5.
Technical Parameters:
| Product Name | Firestone Air Spring |
| Pressure Range | 0.2-0.8 M PA |
| Rubber bellows only | Style 21 |
| MAX O.D. AT 7 BAR | 384 MM |
| Force To Collapse To Minimum Height (@ 0 BAR) | 98 N. |
| Burst pressure | >3.0 M PA |
| Material | Rubber+Steel |
| Air Inlet | 1/4 BSP |
| Package Size | 38*38*22 CM |
| Brand | AIRSUSTECH |
Applications:
Whether you are a commercial truck driver or an off-road enthusiast, AIRSUSTECH 2B0213 is perfect for a variety of applications. Its over 3000,000 pressure tests and over 3.0 M PA burst pressure ensures it can withstand heavy loads and rough terrain. It is ideal for vehicles carrying heavy loads, such as RVs, trailers, and buses.
Packing and Shipping:
Product Packaging:
- Air Bags
- Installation Manual
- Mounting Hardware
Shipping Information:
- Weight: 5 lbs
- Dimensions: 12 in x 8 in x 6 in
- Shipping Method: Ground
- Expected Delivery Time: 3-5 business days
FAQ:
Q: What is the brand name of the air bags?
A: The brand name of the air bags is AIRSUSTECH.
Q: What is the model number of the air bags?
A: The model number of the air bags is 2B6114.
Q: Where are the air bags manufactured?
A: The air bags are manufactured in Guangzhou, China.
Q: What is the minimum order quantity for the air bags?
A: The minimum order quantity for the air bags is 5.
Q: What is the price range for the air bags?
A: The price range for the air bags is from USD69.9/PC to USD99.9/PC.
Q: What is the delivery time for the air bags?
A: The delivery time for the air bags is 5-8 working days.
Q: What are the payment terms for the air bags?
A: The payment terms for the air bags are T/T, Western Union, Paypal or other methods as agreed upon.
Q: What is the supply ability for the air bags?
A: The supply ability for the air bags is 1000PCS/Week.
Q: Are the air bags certified?
A: Yes, the air bags are certified with ISO/TS16949:2009.
Q: How are the air bags packaged?
A: The air bags are packaged in strong carton boxes or as per customers' requirements.
