YN15V00037F1 SK200-8 GM38VB Kobelco Travel Motor Repair Parts In China
YN15V00037F1 SK200-8 GM38VB Kobelco Travel Motor Repair Parts In China
|
Description |
SK200-8 Travel Motor Parts, GM38VB Hydraulic Motor Parts |
|
Application |
SK200-8 Crawler Excavator |
|
Model |
SK200-8, SK210-8, GM38VB |
|
Part No. |
YN15V00037F1, YN15V00037F2 |
|
Quality |
China made, OEM Quality |
|
Weight |
10-15kgs |
|
Packing |
Pack into carton box |
|
MOQ |
1PC |
|
Lead time |
within 24 hours |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
6 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Other Kobelco Excavator Spare Parts We Supply:
| LB54D00001F1 | LC30P00007F1 | YN32W00004F1 |
| LQ54D00010F1 | YN52V01016R100 | VHSZ91049200 8460 |
| M5X130 | ZD12P00600 | 2418R561 [1] |
| LS52S00015P1 | ZD12P01200 | 2418T17494 [1] |
| KP56RM2G-014 | LC15V00022R100 | 2418T17493 [1] |
| KP56RM2G-014 YN20S00002F1 | 2855890 | 2425R212 [1] |
| YY22E00022F5 | 4096429 6240-61-1101 | 2418T17492 [1] |
| LS10V00002S012 | K3V112DT-9TDL YN10V00007F1 | 25Z804D22 [1] |
| ZD12G05000 | 32G61-03900 03400 03500 03700 | 2401P1301 [1] |
| ZD12P03400 | YM01V00019R300 | 2401J149 [1] |
| ZD12P02000 | YN30P01009F1 | 16100-E0373 |

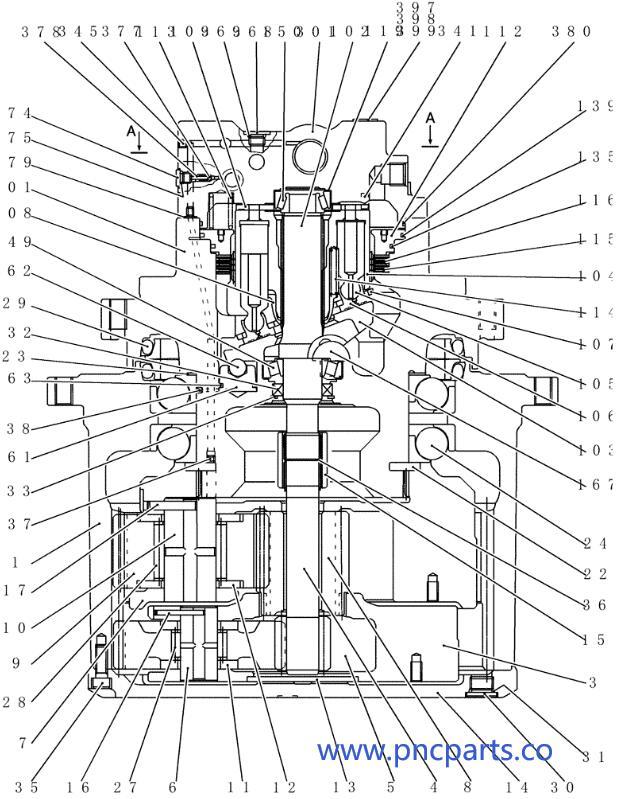

Parts on group SK200-8 GM38VB Travel Motor:
. . YN15V00037F1 [1] HYDRAULIC MOTOR SM (propelling)
. . YN15V00037F2 [1] HYDRAULIC MOTOR
1. YN15V00037S001 [1] HUB
3. YN15V00037S003 [1] FLANGE Carrier
. . YN15V00037R410 [1] PISTON
4. YN15V00037S004 [1] GEAR
. . YN15V00037R420 [1] PLATE
5. YN15V00037S005 [3] GEAR
. . YN15V00037R430 [1] VALVE
6. YN15V00037S006 [3] PIN
. . YN15V00037R440 [1] VALVE
7. YN15V00037S007 [1] GEAR
. . YN15V00037R450 [1] SEAL KIT
8. YN15V00037S008 [1] GEAR
. . YN15V00037R460 [1] REPAIR KIT
9. YN15V00037S009 [3] GEAR
10. YN15V00037S010 [3] PIN
11. YN15V00037S011 [6] WASHER
12. YN15V00037S012 [6] WASHER
13. YN15V00037S013 [1] PLATE
14. YN15V00037S014 [1] COVER
15. YN15V00037S015 [1] COUPLING
16. YN15V00037S016 [3] PIN
17. YN15V00037S017 [3] PIN
22. YN15V00037S022 [2] LOCK WASHER
23. YN15V00037S023 [1] SHIM
24. YN15V00037S024 [2] BALL BEARING
27. YN15V00037S027 [3] ROLLER BEARING
28. YN15V00037S028 [3] ROLLER BEARING
29. YN15V00037S029 [1] SEAL Floating
30. 2441U995S121 [3] PLUG
31. ZD12P01800 [3] O-RING ID 17.8mm x OD 20.2mm
35. ZS23C10035 [18] SCREW,Hex Socket Head, M10 x 35mm
36. ZR26X03200 [1] SNAP RING Retaining
102. YN15V00037S102 [1] SHAFT
103. NSS [1] NOT SOLD SEPARAT CON Plate, Shoe
104. YN15V00037S104 [1] CYLINDER Block
105. NSS [9] NOT SOLD SEPARAT CON Piston
106. NSS [9] NOT SOLD SEPARAT CON Shoe
107. YN15V00037S107 [1] PLATE Retainer (For F1 ONLY)
108. YN15V00037S108 [1] BALL Joint (For F1 ONLY)
109. YN15V00037S109 [1] PLATE
112. YN15V00037S112 [1] PISTON
113. YN15V00037S113 [8] SPRING
114. YN15V00037S114 [9] SPRING
107. YN15V00037S098 [1] PLATE Retainer
115. YN15V00037S115 [3] PLATE Friction
116. YN15V00037S116 [4] PLATE Separator
108. YN15V00037S099 [1] BALL
119. YN15V00037S119 [1] SHIM
132. YN15V00009S027 [1] OIL SEAL
