China JCB220 31N6 40050 Travel Reduction Gear R210 7 Travel Device for sale

JCB220 31N6 40050 Travel Reduction Gear R210 7 Travel Device

Price Negotiable

Price: USD 1600-1665/PC

MOQ: 1PC

Delivery Time: 1-3 working days

Brand: PNC

Product Description

JCB220 31N6 40050 Travel Reduction Gear R210 7 Travel Device

R210-7 Travel Device TM40 Final Drive Assy 31N6-40050 JCB220 Track Device

Description	JCB220 Final Drive, R210-7 Travel Motor Assy, R265-7 Final Drive
Application	Hyundai R265-7 Excavator
Model	R210-7, R215-7, R265-7, JCB JS220, EC210
Part No.	31N6-40050, 2401-9287A, 401-00454
Quality	OEM quality, China made
Weight	300-350 kgs
Packing	Pack into export wooden
MOQ	1PC
Lead time	About 1-3 working days
Payment	TT, Western union, Paypal, Paysend, RMB
Warranty	6 Months
Shipping Port	Huangpu Old Port, Shenzhen Yantian,Guangzhou

Hyundai HCE machinery list:
R210LC-7>>
TRAVEL MOTOR(1/2, #2079-, TYPE 1) » TRAVEL MOTOR ASSY 31N6-40050
R210/220LC-7H>>
TRAVEL MOTOR(1/2, TYPE 1) » TRAVEL MOTOR ASSY 31N6-40050
R210NLC-7>>
TRAVEL MOTOR(1/2, #0110-) » TRAVEL MOTOR ASSY 31N6-40050
R210LC-7(#98001-)>>
TRAVEL MOTOR(1/2, TYPE 1) » TRAVEL MOTOR ASSY 31N6-40050
R210LC-7H(#9001-)>>
TRAVEL MOTOR(1/2, OPTION) » TRAVEL MOTOR ASSY 31N6-40050

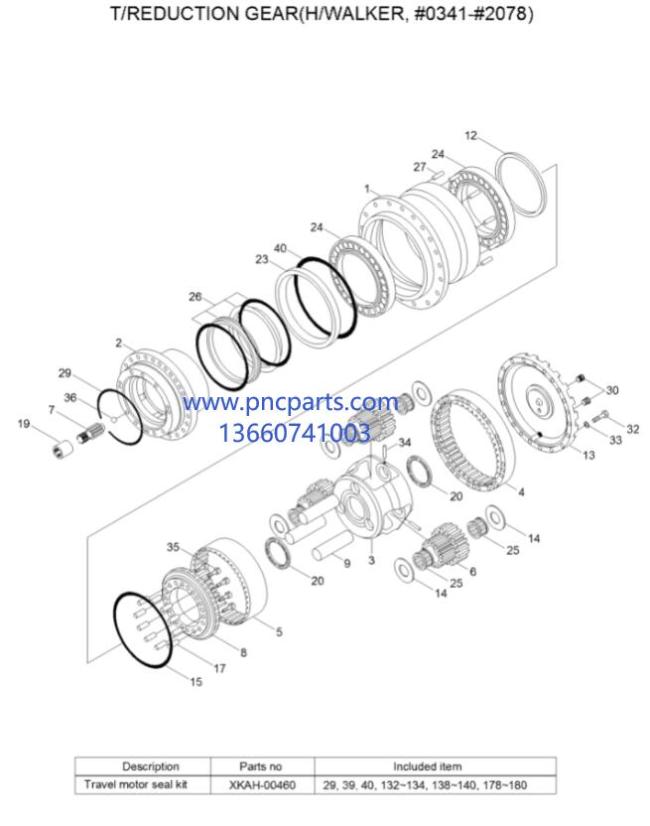

Parts on group R210-7 Final Drive Assy:

Pos.	Part No	Qty	Parts name	Comments
*-2.	XKAH-00452	[1]	REDUCTION GEAR	SEE 4171
*-21.	XKAH-00453	[1]	HUB ASSY
N1.	XKAH-00451	[1]	HUB
4.	XKAH-00448	[1]	GEAR(A)-RING
27.	XKAH-00431	[10]	PIN-PARALLEL
*-22.	XKAH-00454	[1]	SPINDLE ASSY
N2.	XKAH-00450	[1]	SPINDLE
8.	XKAH-00444	[1]	COUPLING GEAR
17.	XKAH-00437	[10]	PIN
3.	XKAH-00449	[1]	CARRIER
5.	XKAH-00447	[1]	GEAR(B)-RING
6.	XKAH-00446	[3]	CLUSTER GEAR
7.	XKAH-00445	[1]	GEAR-SUN
9.	XKAH-00443	[3]	SHAFT(CLUSTER)
12.	XKAH-00442	[1]	PIECE-DISTENCE
13.	XKAH-00441	[1]	COVER
14.	XKAH-00440	[6]	COLLAR-THRUST
15.	XKAH-00439	[1]	RING
19.	XKAH-00022	[1]	COUPLING
20.	XKAH-00436	[2]	PLATE-THRUST
23.	XKAH-00435	[1]	SEAL-RING
24.	XKAH-00434	[2]	BEARING-BALL
25.	XKAH-00433	[6]	NEEDLE-BEARING
26.	XKAH-00432	[1]	SEAL-FLOATING	EXCLUDE S/KIT
K29.	XKAH-00028	[1]	O-RING
30.	XKAH-00338	[3]	PLUG-PT
32.	XKAH-00430	[20]	BOLT-HEX
33.	XKAH-00336	[20]	WASHER-SPRING
34.	XKAH-00429	[3]	PIN-PARALLEL
35.	XKAH-00428	[10]	BOLT-SOCKET
36.	XKAH-00033	[1]	BALL-STEEL
K39.	XKAH-00194	[2]	O-RING
K40.	XKAH-00427	[1]	O-RING
K.	XKAH-00460	[1]	SEAL KIT	SEE ILLUST

More final drive we do:

9238015 288-3462	Final drive
194-6469,284-0878 22L-60-21101	Final drive
9231614	Final drive
22E-60-12800	Final drive
9069295 9138927 9096479	Final drive
21W-60-41201/41202	Final drive
9150030 /9156719	Final drive
KNA10460 KNJ2295	Travel motor assy
332-7499 099-5351	Travel motor assy
9213445 9213322	Travel motor assy
353-0609	Travel motor assy
20460-51455	Travel motor assy
31N6-40050 2401-9287A 401-00454A/B/C	Travel device
KBA0926 151890AI LNM0389 LNM0388	Travel device
KRA1426 KRA10120 LQ15V00031F2	Travel device
LQ15V00007F1 LQ15V00019F1	Travel device
